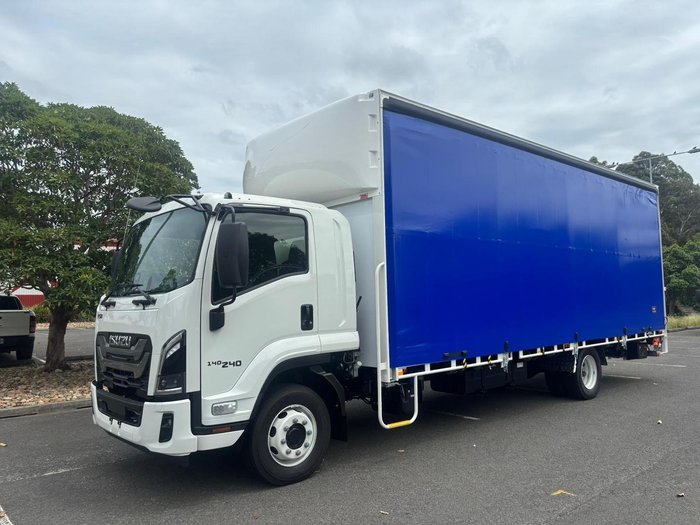

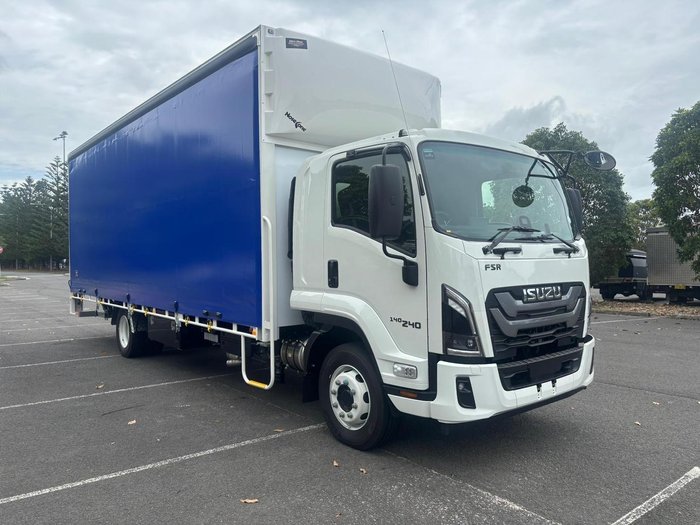

2025 Isuzu F Series FSR 140/120-240 AM R56

2026 Isuzu FSR 140/120-240 AM R56 (MY25)

Engine: Isuzu 4HK1-TCH| 5.2L 4 Cylinder Turbo Diesel

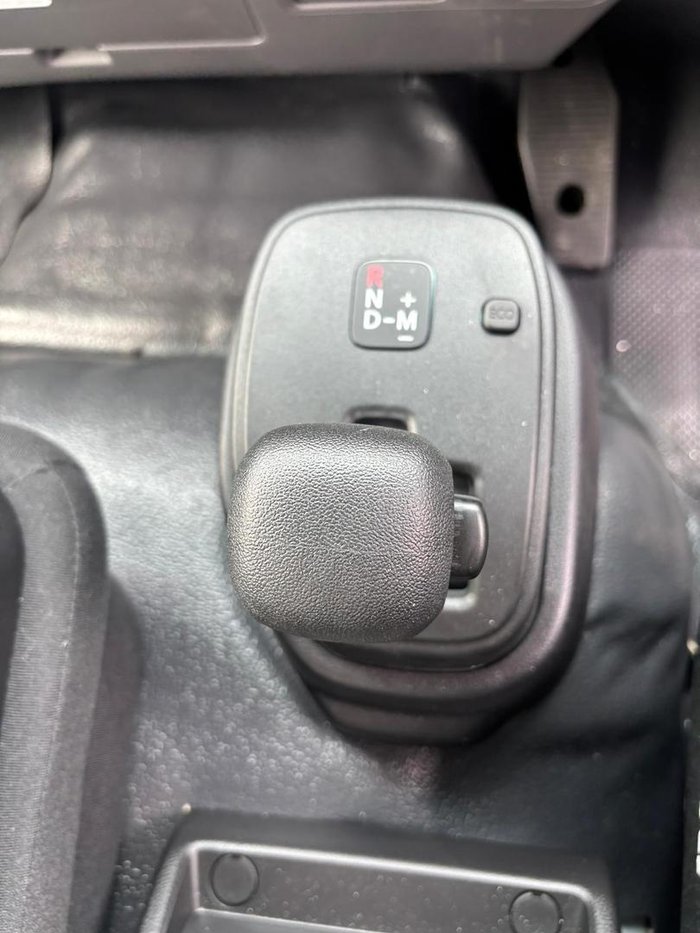

Transmission: ISUZU MZW-6P | 6 Speed Automated Manual Transmission
Power: 240 Hp | 177 kW @ 2,400 RPM
Torque: 765 Nm @ 1,600 RPM
Weight Rating: GVM: 14,000 Kg (Opitional 12,000kg)
GCM: 18,500 Kg
Wheelbase: 5,560 mm

Body Specifications

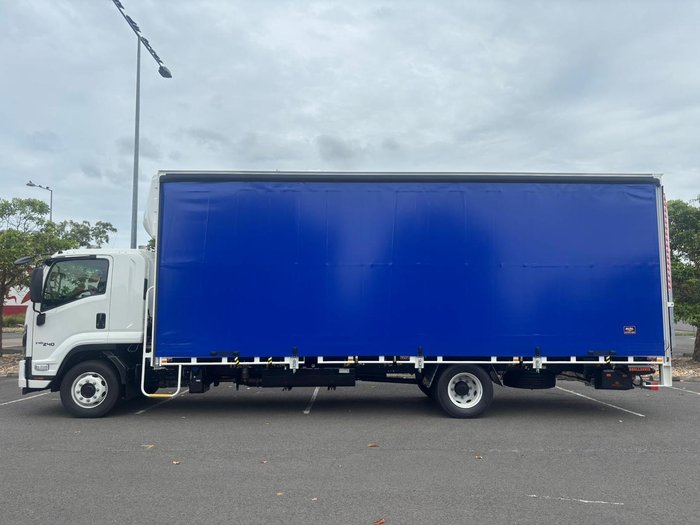

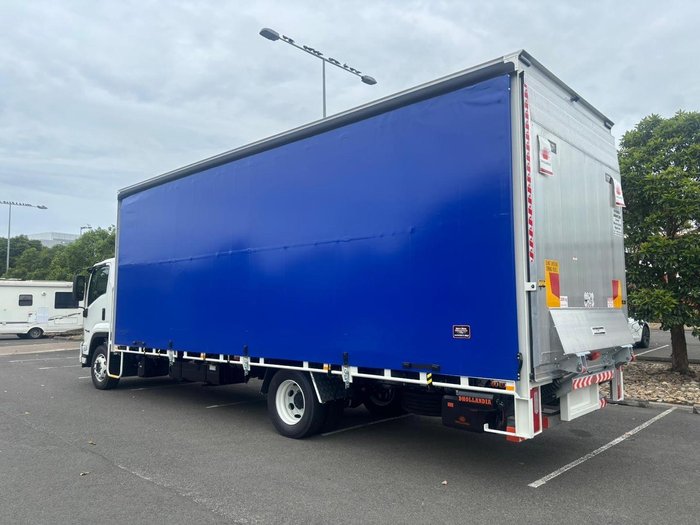

Heavy Duty 12 Pallet Taughtliner
Size 7625mm overall length
2495mm overall width
2500mm Side opening

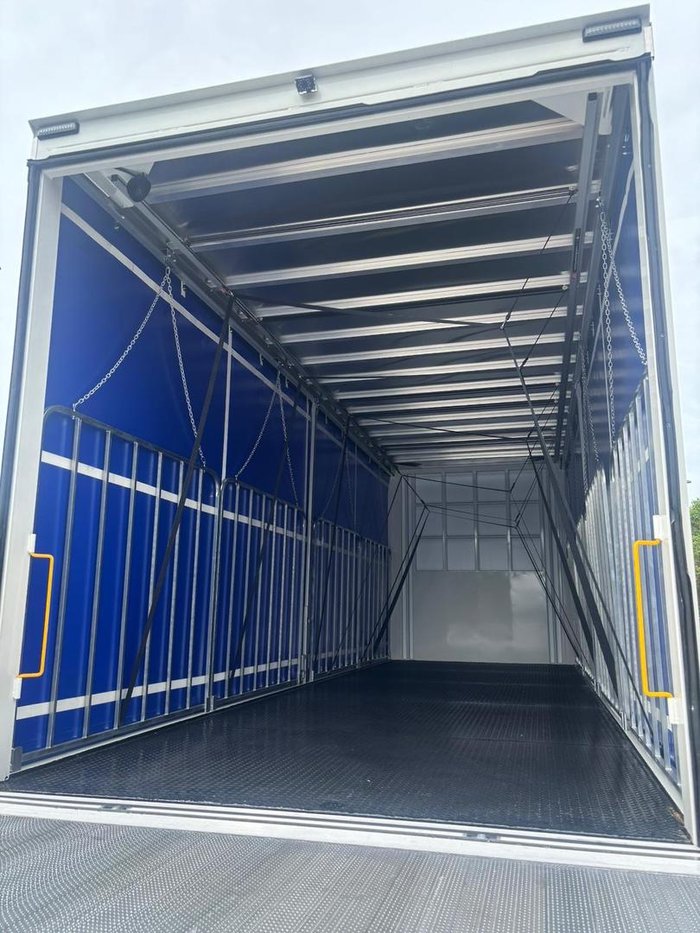

Floor base
• 5mm steel chequer plate floor sheets painted black
• 125 x 65mm channel floor main runners bolted to the chassis rails with channel fitch plates
• 75 x 40mm channel cross bearers welded to the main runners
• 100 x 50mm Channel side combing rails raised 18mm above the floor sheets
• Heavy duty Rope rail pipe to full length of body on each side of the body 75mm below the
combing rails
• Pipe or RHS stirrup steps with chequer plate foot platforms on each side of the body at the
front only

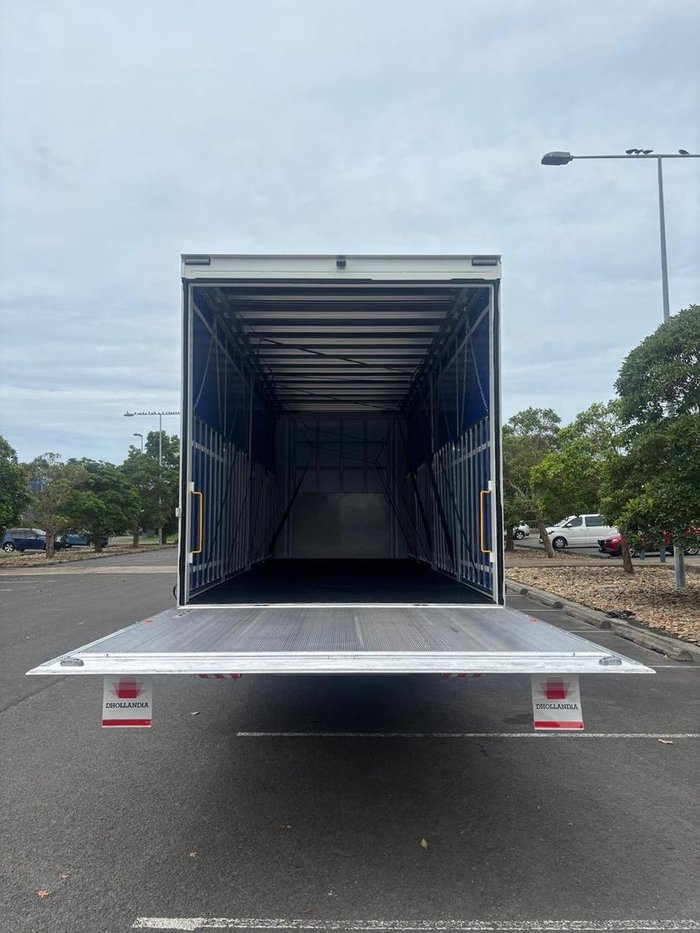

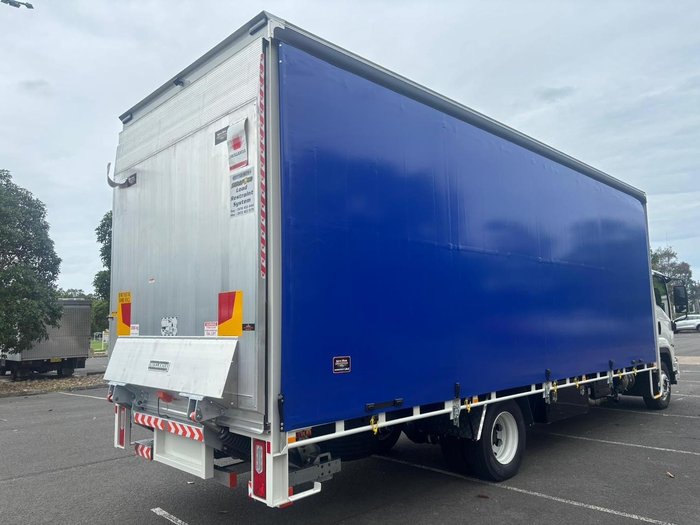

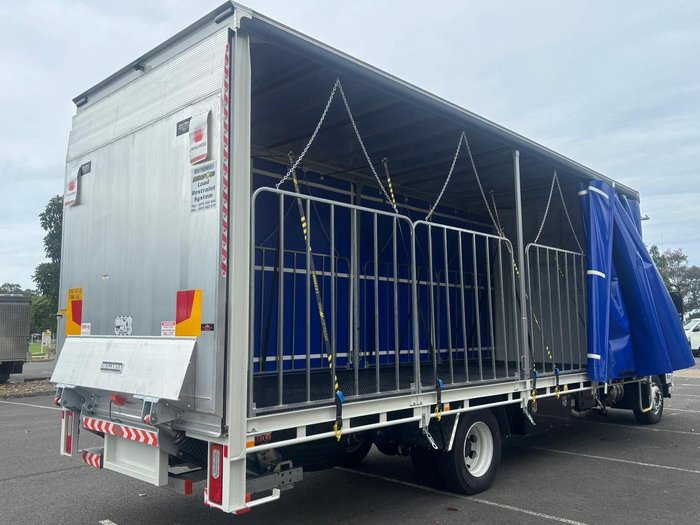

Curtain body
• RHS framed front wall assembly with flush load capability

Front mounted steel curtain Tensioners and curtain wrapper posts

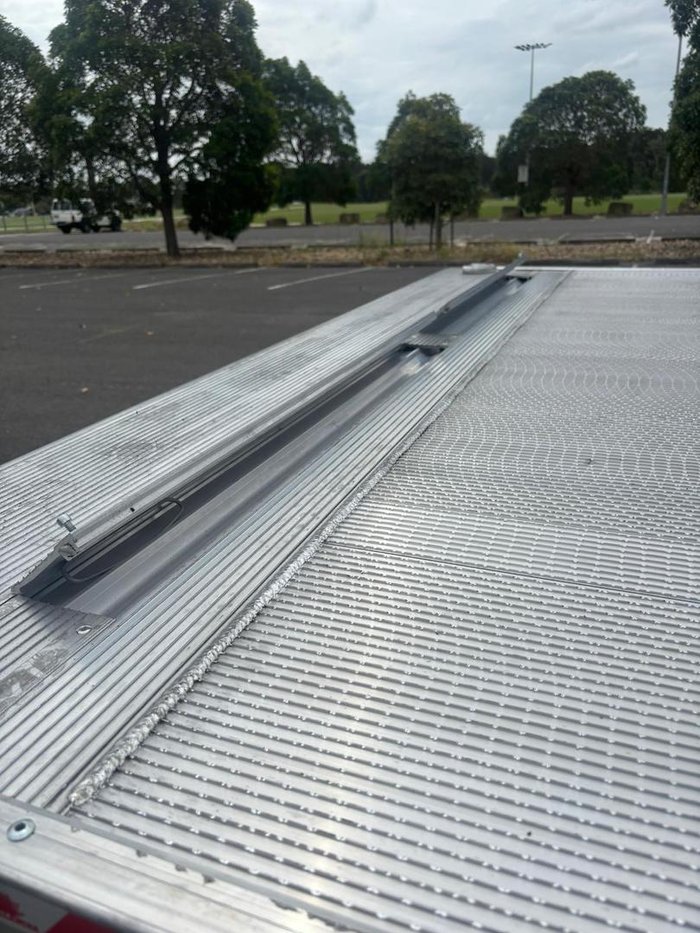

• Full aluminium constructed roof with structural curtain track incorporating a full-length sliding
track
• Roof double braced to the front wall and rear frame of body
• Pelmet rubber on each side
• 1500mm Lift out hanging gate
• 6 x Under body sliding winches with Strap N Go
• Nosecone

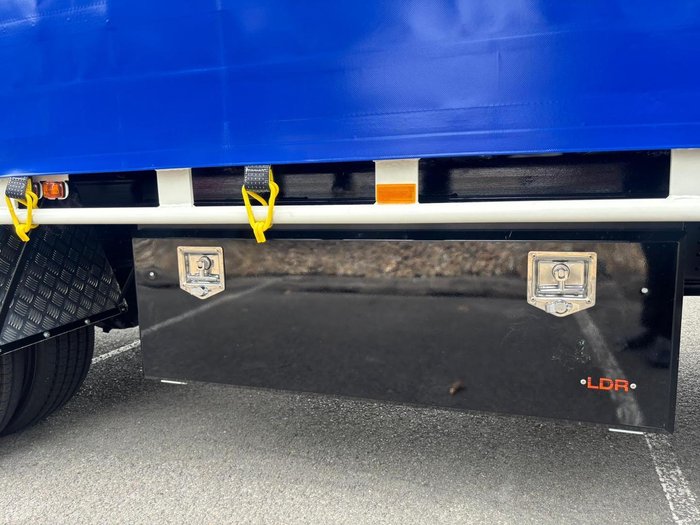

• Underbody toolbox

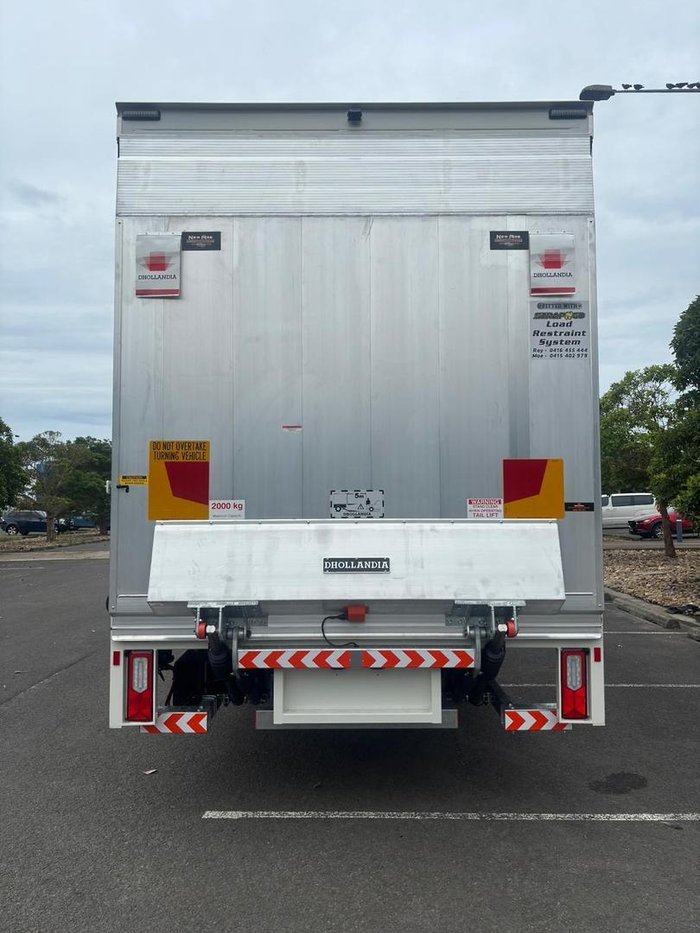

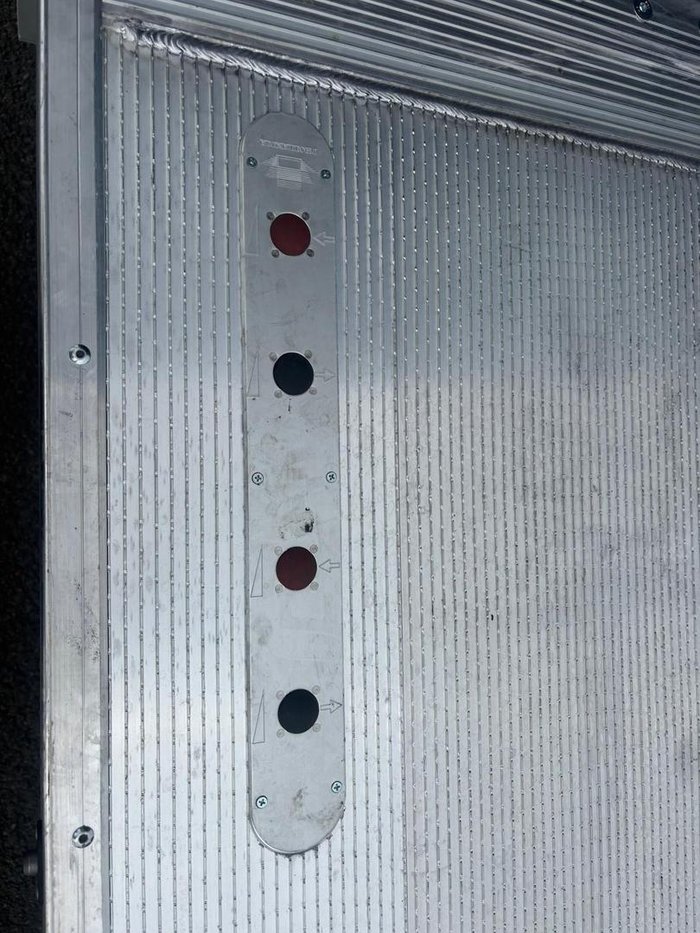

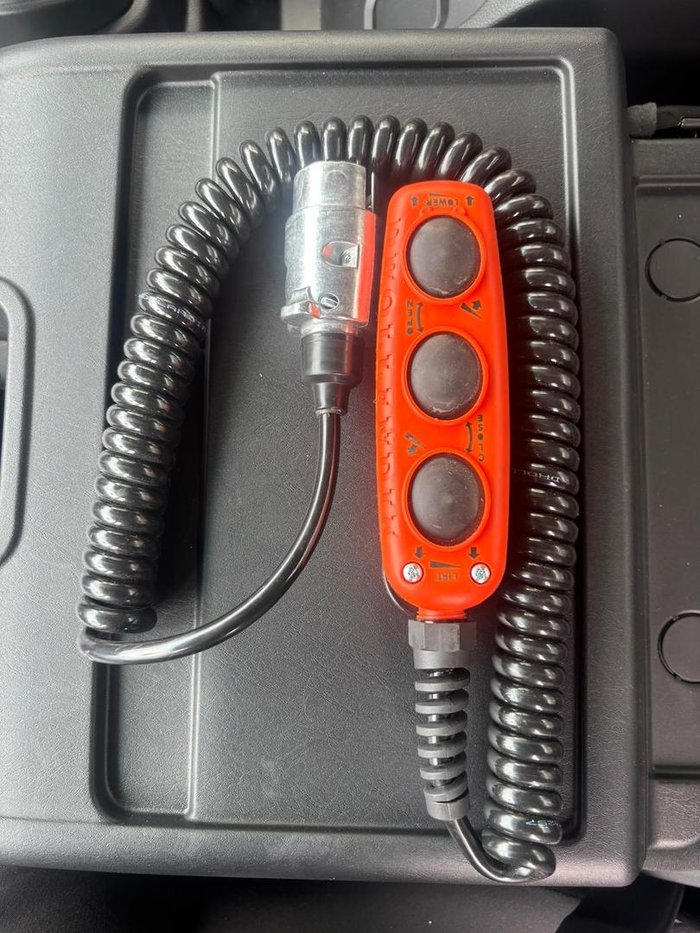

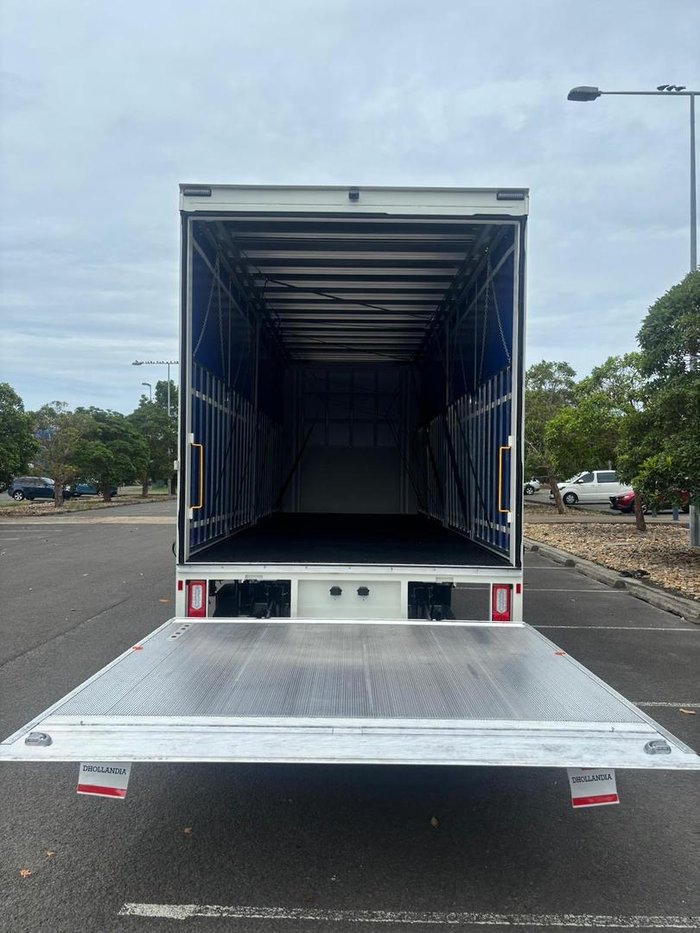

• 2000kg rear sealing tailgate
• Aluminium platform to suit height
• Extend rear of chassis approximately 500mm to rear of body to fit loader, including updated
engineer certification
Curtains
• 890 gsm curtain set with bearing guide rollers and stainless-steel buckles

Electrical
• One (1) only LED work lamp with external operating switch wired to the parking lamps
• ADR approved LED clearance and marker lamps only fitted to comply with all
regulations
Standard inclusions:
• Aluminium propeller plate mudguards

Advanced Safety Features:
Advanced Emergency Braking (AEB)
Adaptive Driving Beam (ADB)
Anti Lock Braking System (ABS)
Anti Skid Regulator (ASR)
Attention Alert System (AAS)
Auto Lighting System (ALS)
Cab Tilt Warning (CTW)
Customisable Speed Limiter (CSL)
Distance Warning System (DWS)
Electronic Stability Control (ESC)
Forward Collision Warning (FCW)

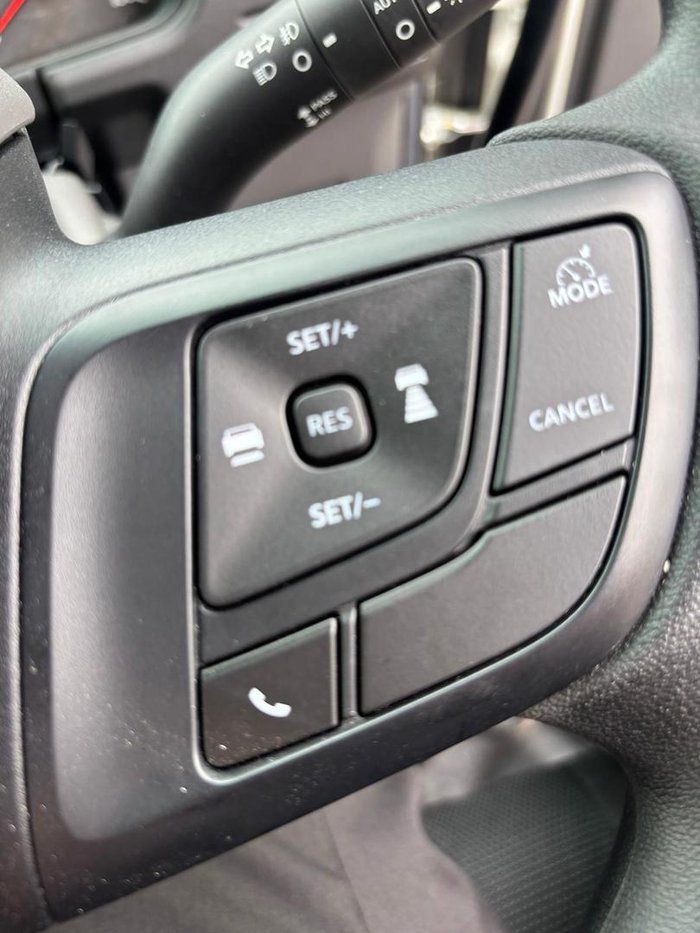

Full Speed Adaptive Cruise Control
(FACC)
Intelligent Speed Limiter (ISL)
Lane Departure Warning (LDW)
Traffic Movement Warning (TMW)
Traffic Sign Recognition (TSR)
Passive Safety Cabin Occupant Safety Safety (COSS)
Door Mounted Cornering Lamps
Driver and Front Left Hand Passenger
Seatbelt Pretensioners
Driver and Front Passenger Airbags
ECE-R29 Cab with Side Anti-Intrusion Beams
Overhead storage compartments with doors.
Standard Features:
ADR 80/04 Euro VI Compliant
Emissions - SCR - Selective Catalytic Reduction), DPD (Diesel Particulate Diffuser) & EGR
(Exhaust Gas Recirculation)
Jacobs Engine Compression Brake
Electronically Controlled Variable Nozzle Turbocharger
Direct Injection High Pressure Common Rail System
200L Frame Mounted Lockable Steel Fuel Tank
28L AdBlue Tank
90° Opening Internally Reinforced Doors
Heated and Power Adjusted Top Mirrors and Bottom Convex Spot Mirrors
Central Locking with Remote Entry and Immobiliser

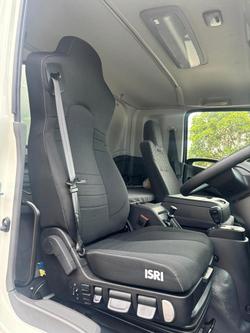

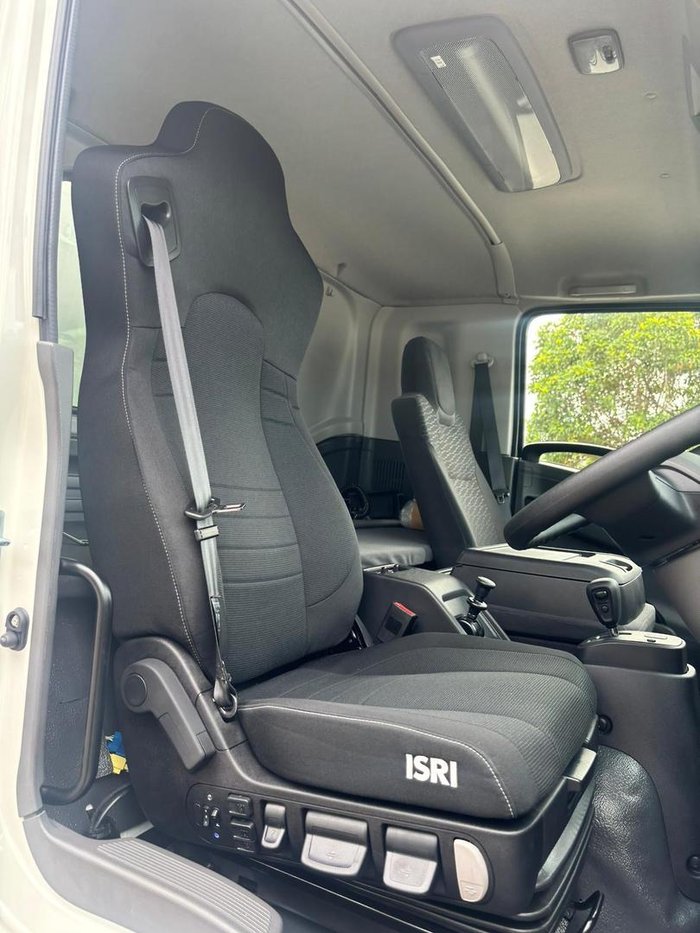

Driver's ISRI 6860/875 NTS2 Air Suspension Seat

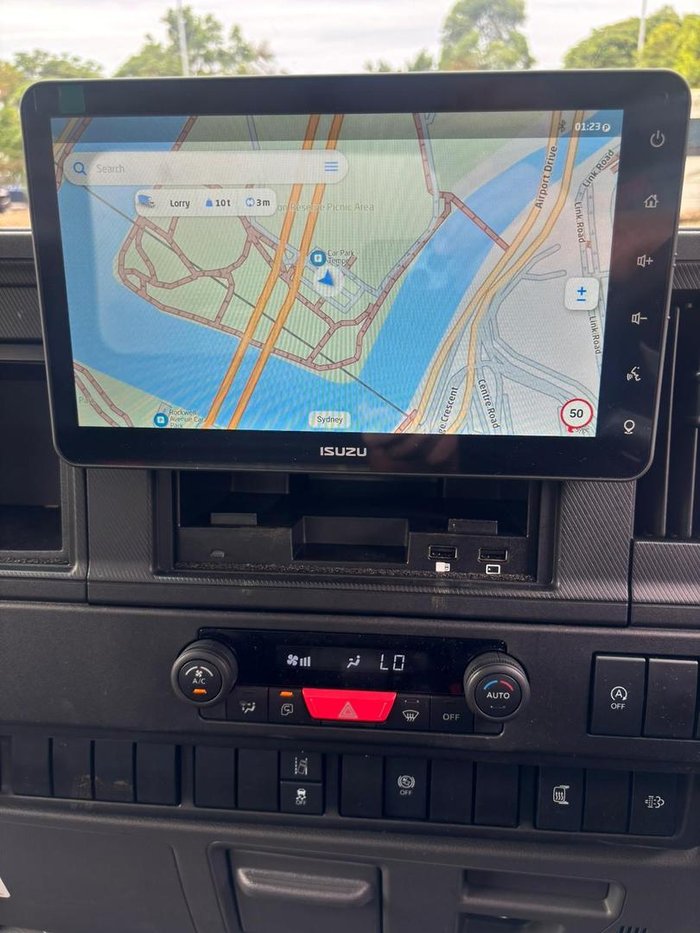

10.1" 1080p High-Definition Audio Visual Unit with Capacitive Touch
Truck Tailored GPS Based System
Android Auto / Apple CarPlay Compatible
USB 3.0 Socket
Warranty:
6 Year Standard Warranty | 300,000 Km | Unlimited Hours (Whichever Comes First)
Genuine Accessory and RTW Equipment Warranty:
3 Year Standard Warranty | Unlimited Km | Unlimited Hours
Aftermarket Accessory and Body Warranty:
12 Month Standard Warranty | Unlimited Hours
Roadside Assistance:
6 Year Roadside Support 24/7 | Unlimited Km
Please Note: If warranty period may differ depending on harsh application (4x4, AWD, Agitator,
Compactor, etc.)
