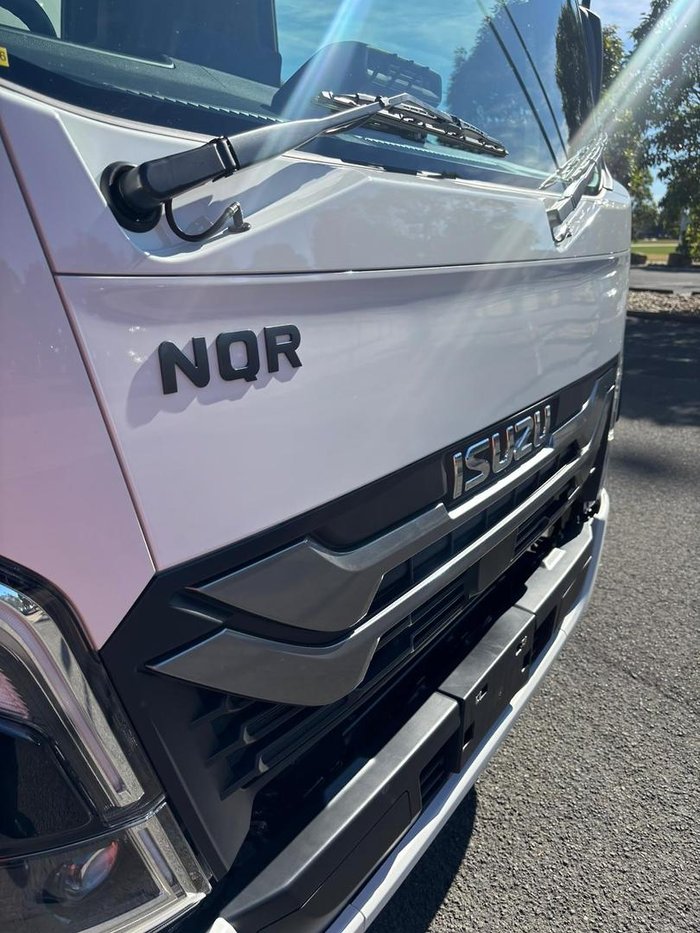

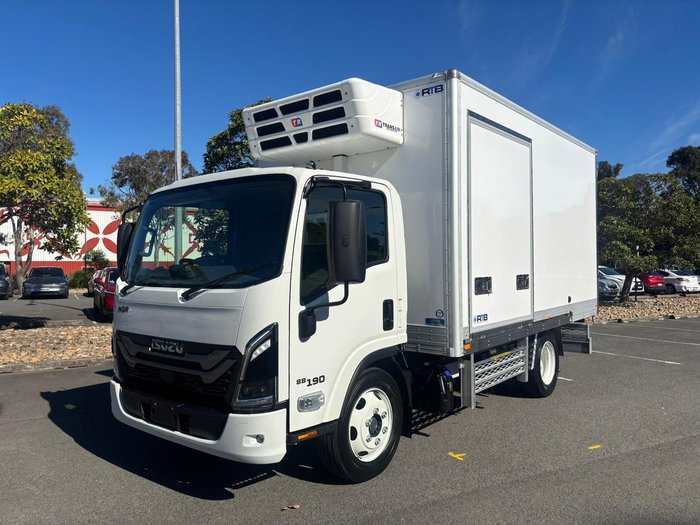

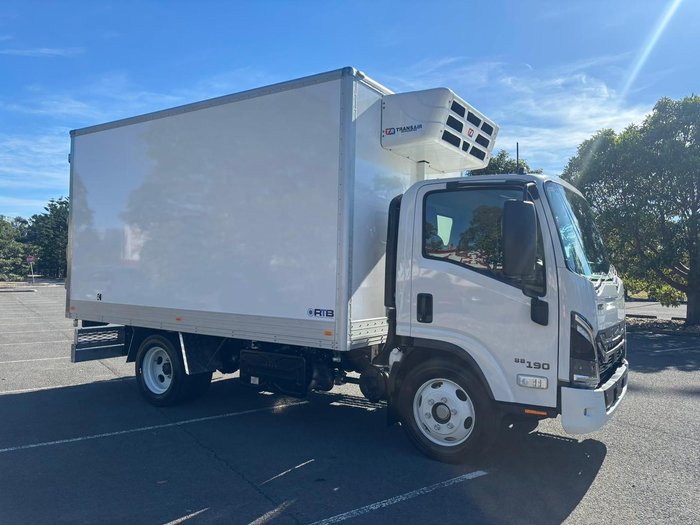

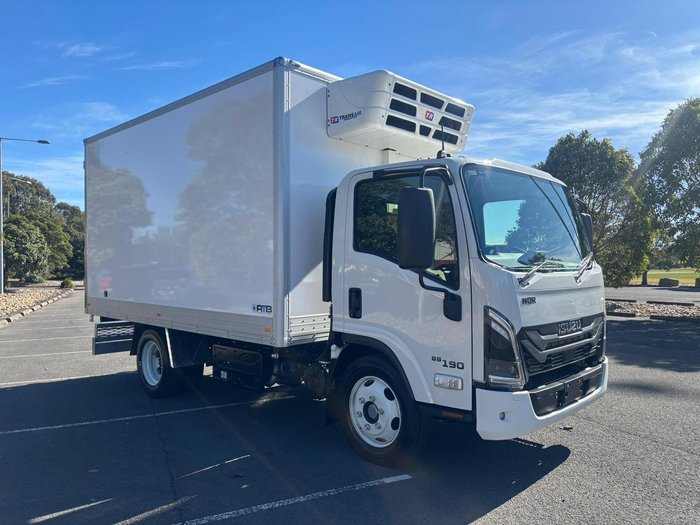

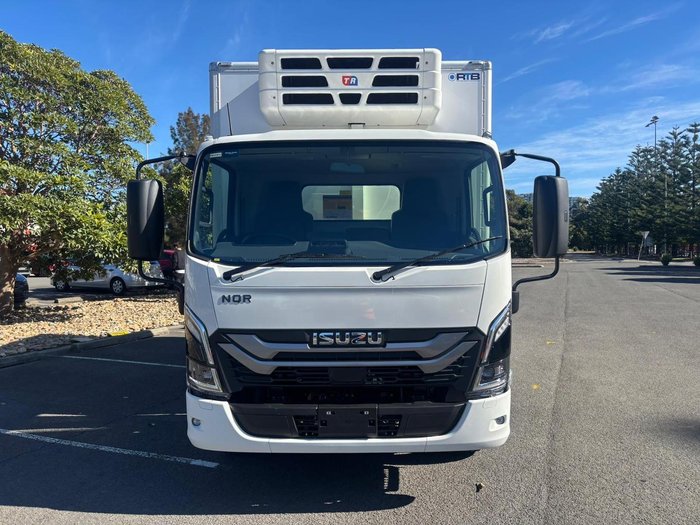

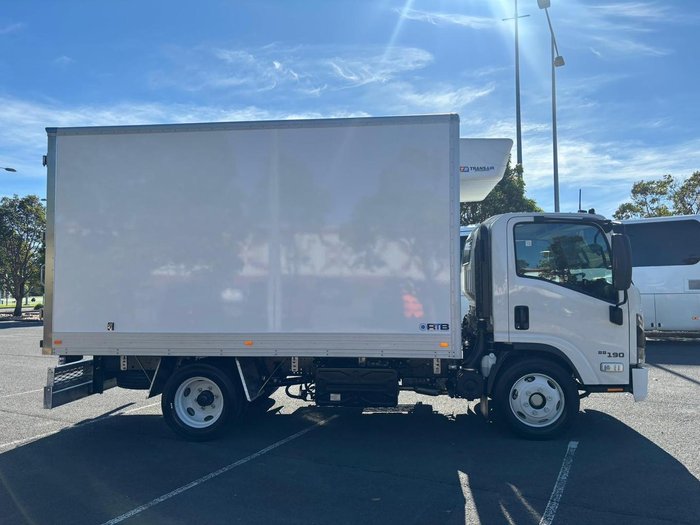

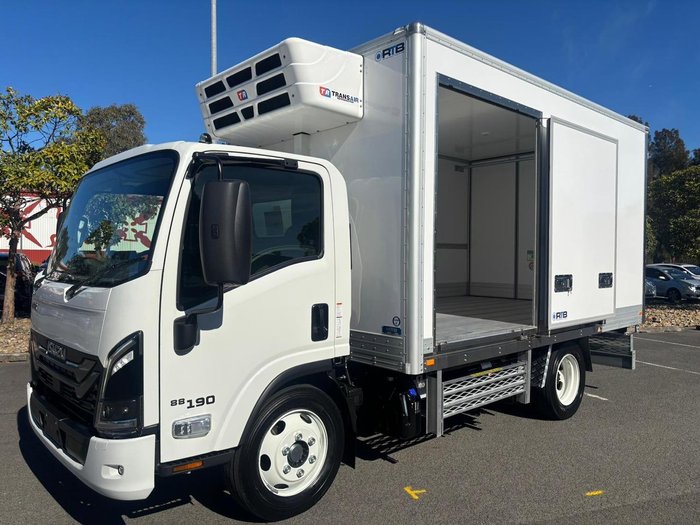

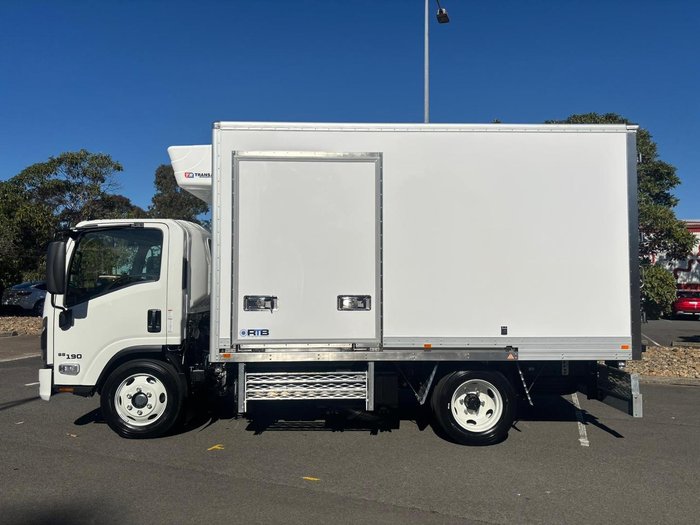

2025 Isuzu N Series NQR 88/80-190 AM D34

2025 NQR 88/80-190 (MY25)
Weight Rating:8,800 / 8,000 kg GVM

Engine Power 140 kW @ 2,600 rpm Torque 513 Nm @ 1600 - 2600 rpm
Transmission: 6 speed automated manual transmission (AM)
Wheelbase 3,365 mm

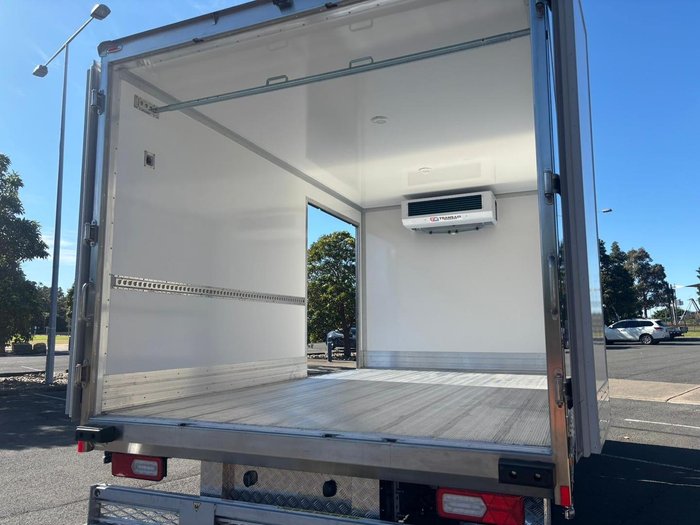

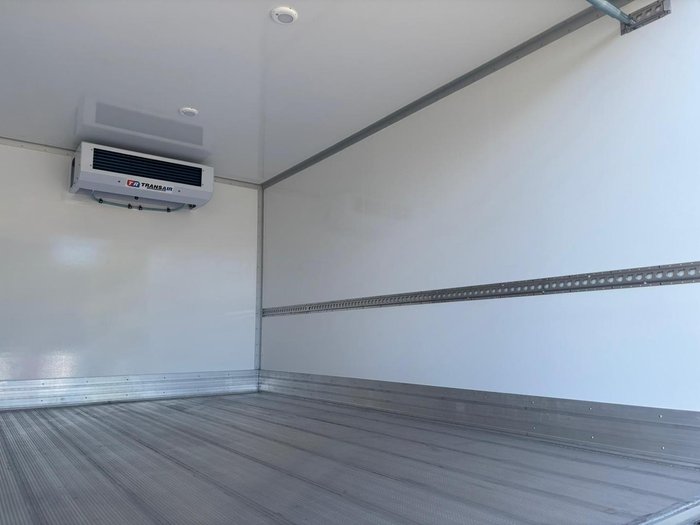

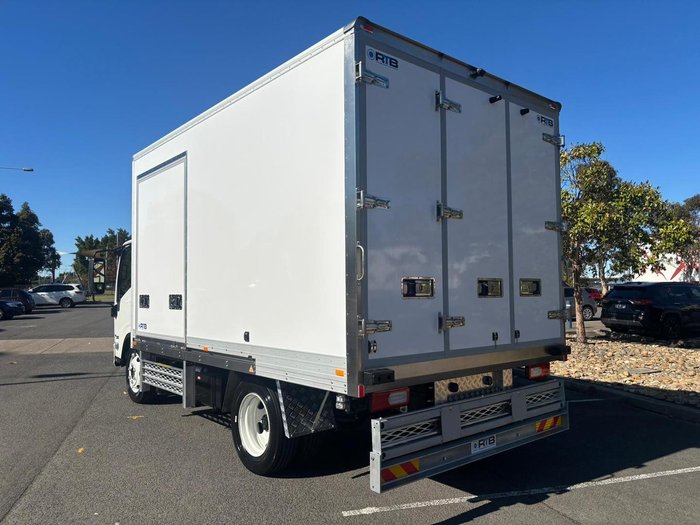

RTB Refrigerated Truck Bodies

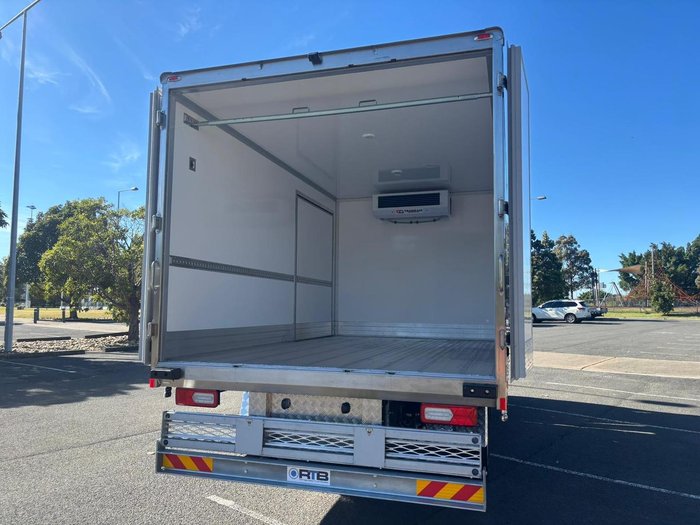

RTB42W3-SD 6 pallet + jack 20m3
Refrigerated Body
4200mm x 2500 x 2050 Internal Height
Heavy duty fully welded extruded T6061-T6
aircraft-grade aluminum alloy floor

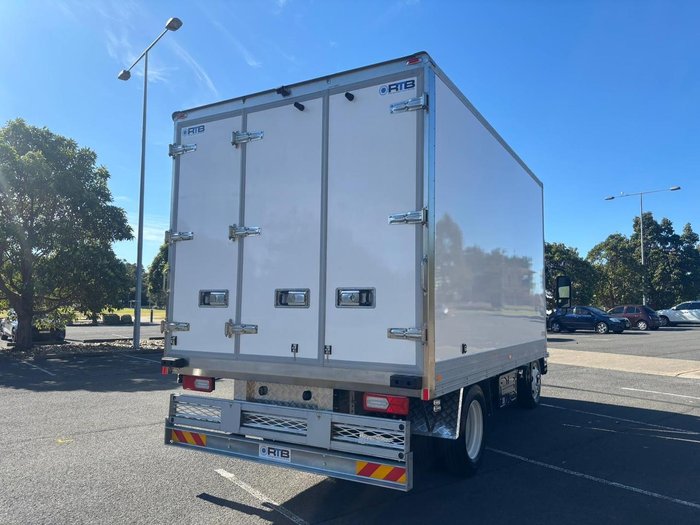

Triple rear door

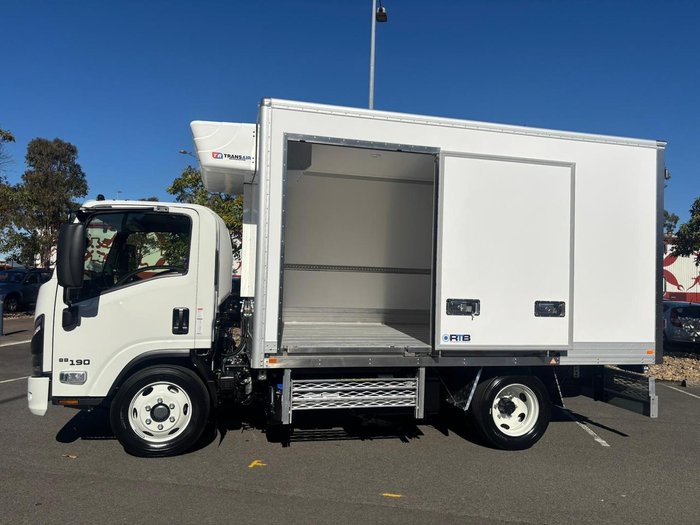

Sliding side door
Stainless steel hardware and door with thermal break frames
1 x row stainless steel cargo track with bar and holder
Approximate weight: 1,492kg
TransAir TU-07 Off Engine Drive (KAU05)
Temperature Rating: -15 deg C
Key Features
• ADR 80/04 (Euro VI) Compliant
• Advanced Emergency Braking (AEB)
• Lane Departure Warning (LDW)
• Full Speed Adaptive Cruise Control (FACC) (AM models only)
• Electronic Stability Control (ESC)
• ECE-R29 cab with side anti-intrusion beams

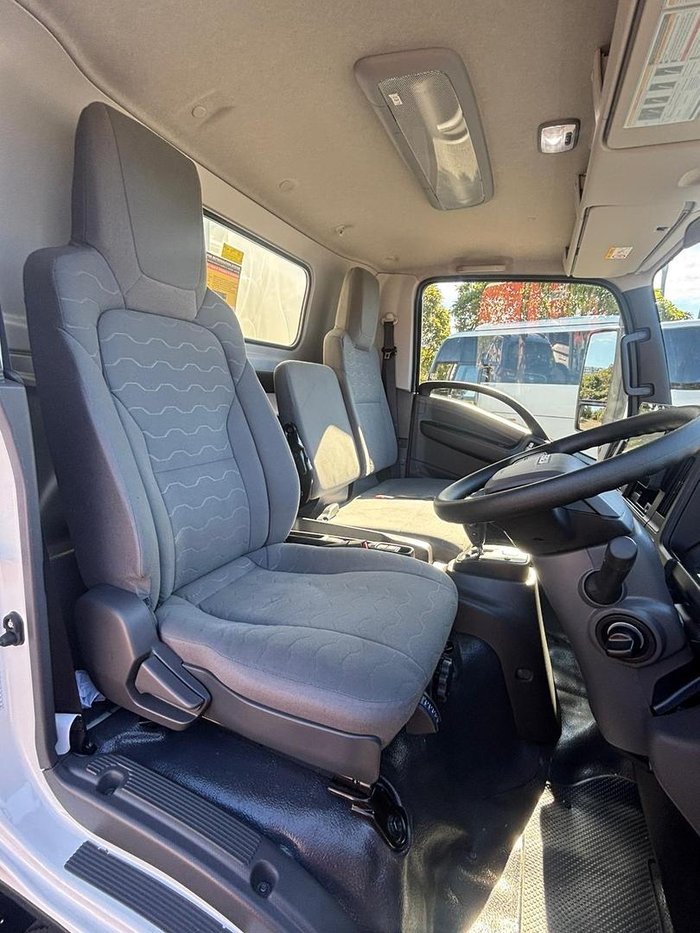

• Driver Suspension Seat
• Bi-LED Headlamps with Daytime Running Lamp
Engine
Description Isuzu 4HK1-TCS
Type 4 Cylinder 16 valve SOHC
Power 140 kW (190PS) @ 2,600 rpm Torque 513 Nm @ 1600 - 2600 rpm
Displacement 5193 cc
Induction Electronically controlled variable nozzle turbocharger with air-to air intercooler
Fuel Injection Direct injection high pressure common rail
Emission Standard ADR80/04 (Euro VI-C) SCR (Selective Catalytic Reduction) DPD (Diesel Particulate Diffuser) Cooled EGR (Exhaust Gas Recirculation)
Auxiliary Brake Vacuum controlled exhaust brake

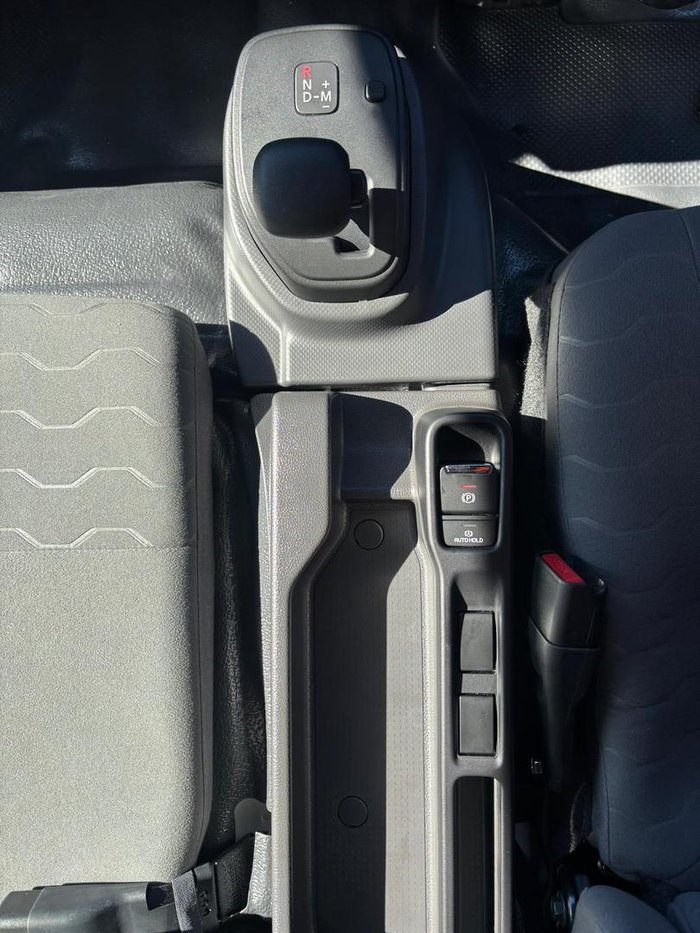

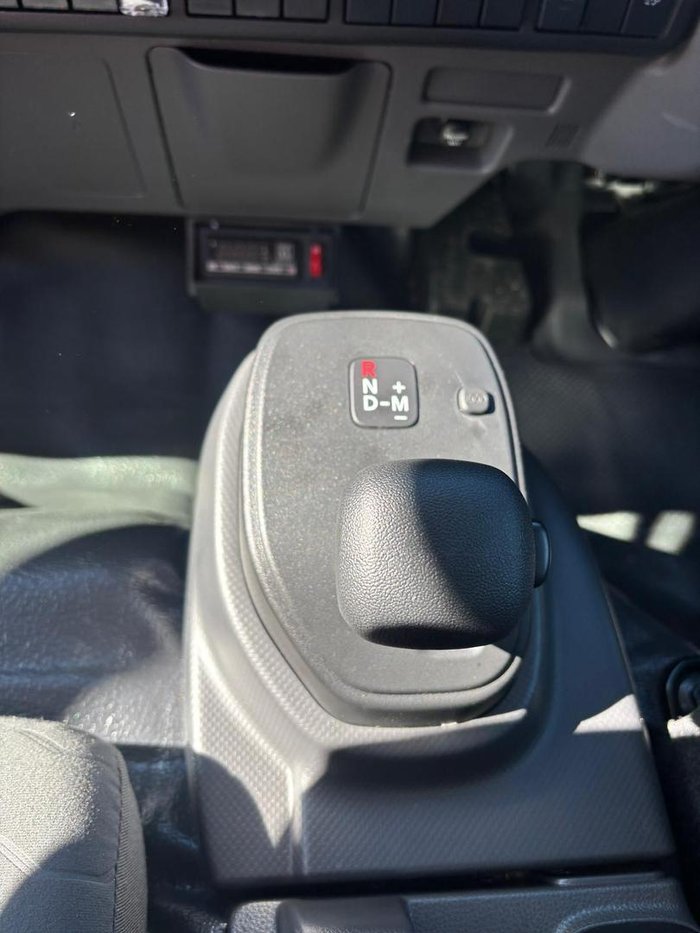

AMT Transmission
Description: Isuzu MZZ-6F Type: 6 speed Automated Manual (AM) with both fully automatic and clutchless manual operation modes.

Anti-Lock Braking System (ABS)
Anti-Skid Regulator (ASR)
Attention Alert System (AAS)
Auto Lighting System (ALS)
Customisable Speed Limiter (CSL)
Distance Warning System (DWS)
Forward Collision Warning (FCW)
Intelligent Speed Limiter (ISL) (AMT Only)

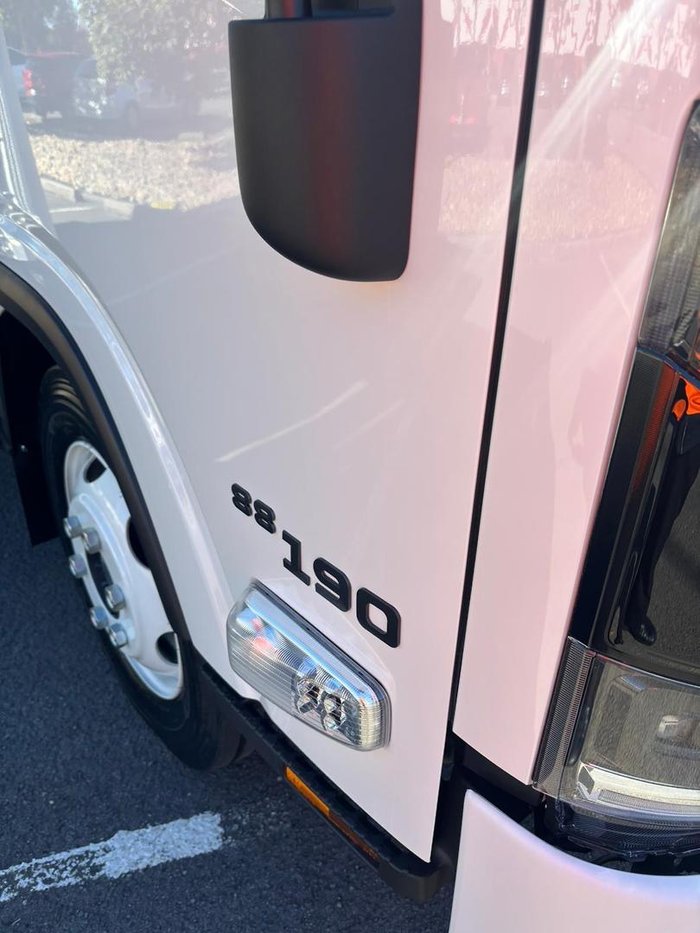

Door Mounted Cornering Lamps
Driver and Front Left Hand Passenger Seatbelt Pretensioners
Driver and Front Passenger Airbags
Overhead storage compartments with doors
Diesel Tank
Type: Frame mounted steel tank Maximum capacity: 140 L
Lockable cap AdBlue® Tank Type: Frame mounted high-density polyethylene tank
Maximum capacity: 16 L
Electrical Systems
Type 24 volt
Alternator 90 amp
Battery 2x 80D26L 600 (CCA) batteries connected in series
Chassis Frame
Type Cold rivetted ladder frame Steel
Dimensions Side rail (mm): 230 x 70 x 5.0 Rear frame width (mm): 850
Axles Front Description: Isuzu F031 Type: Reverse Elliot I-beam Capacity: 3,100 kg
Rear Description: Isuzu R066 Type: Full floating banjo with four differential pinions
Capacity: 6,600 kg Ratio: 4.556 (AM),
Wheels & Tyres
Front Wheels: 19.5 x 6.00 six stud steel (White)
Tyres: 225 / 70R19.5 Michelin XZE Tubeless Steer axle tyre rating: 3,300 kg
Rear Wheels:
19.5 x 6.00 six stud steel (White) Tyres: 225 / 70R19.5 Michelin XZE Tubeless Drive axle tyre rating: 6,200kg Spare 1 frame mounted spare wheel and tyre assembly
Brakes Type Ventilated disc/disc with dual circuit hydraulic control, integrated boost assist Diameter Front
363 mm
Diameter Rear
348 mm
Park Brake 203 mm diameter drum mounted on rear of transmission

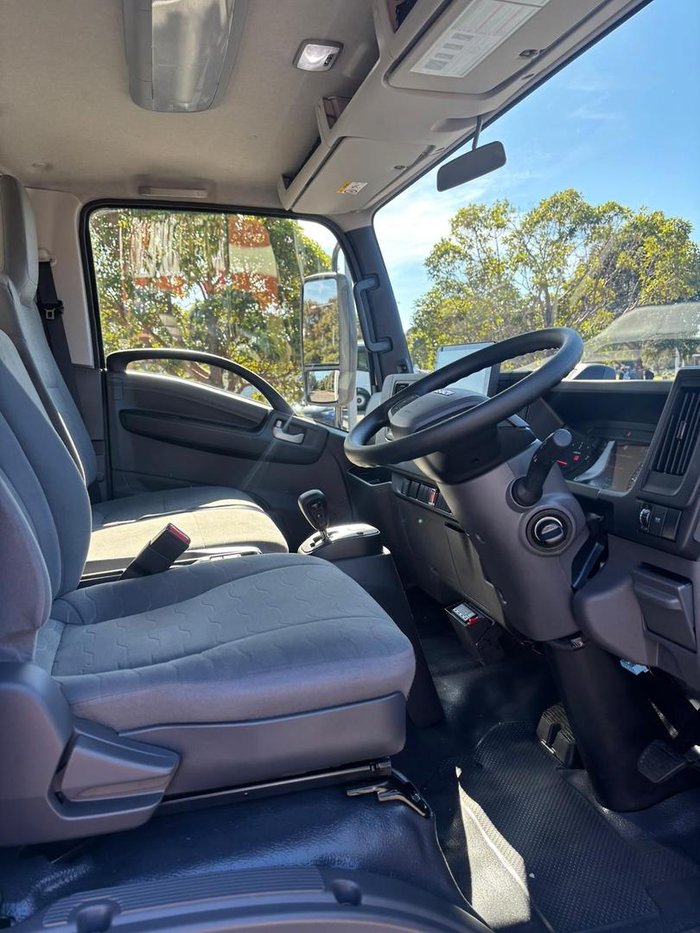

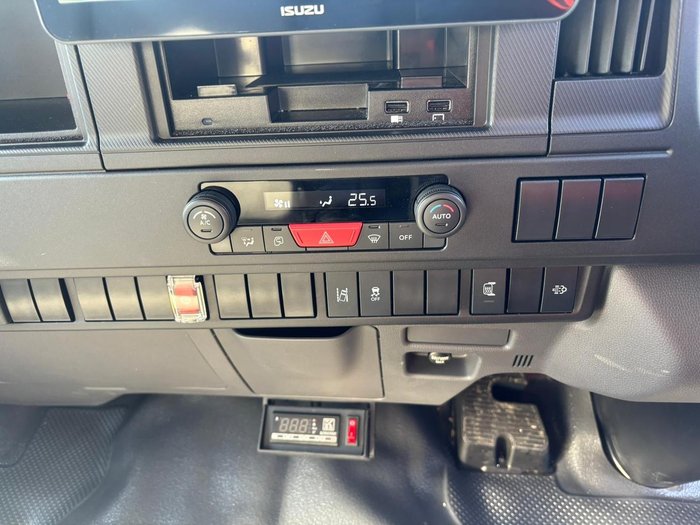

Cabin Features
Engine Access
Manual cab tilt to 45° with torsion bar assistance
Steps Heavy duty anti slip steps
Doors 70° opening internally reinforced front doors
Mirrors Heated & powered exterior main mirrors with flat glass and additional independently adjustable convex "spot" mirrors
Wipers Two speed windscreen wipers with intermittent wipe mode
Exterior Lighting BI-LED Headlamps with LED Daytime Running Lamps (DRL)
LED roof mounted clearance lamps
Front LED fog lamps
LED tail lamps Audible Warning Reverse alarm
Security Passive Entry and Start System (PESS) with remote central locking and immobiliser
6 Year Standard Warranty 250,000 km / Unlimited Hours
6 Year Roadside Support 24/7 Unlimited Km
Servicing package tailor made to suit customer application available upon request
