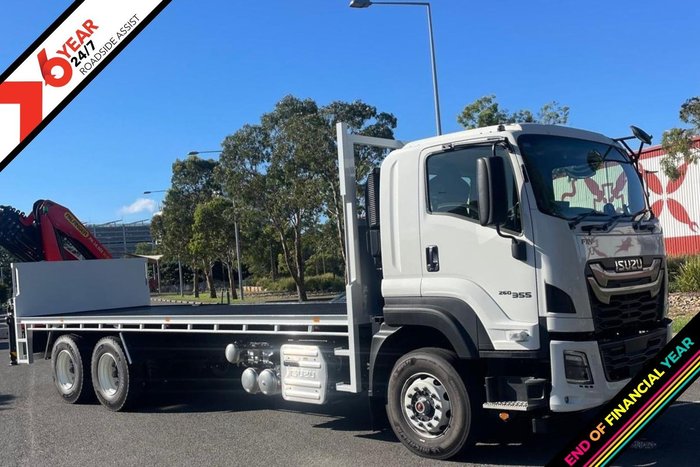

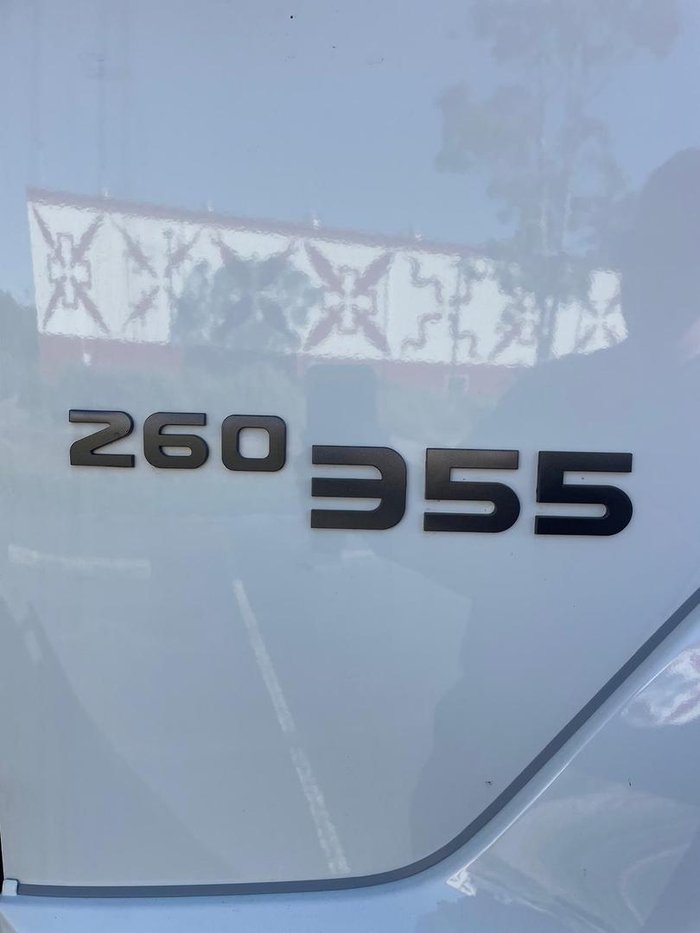

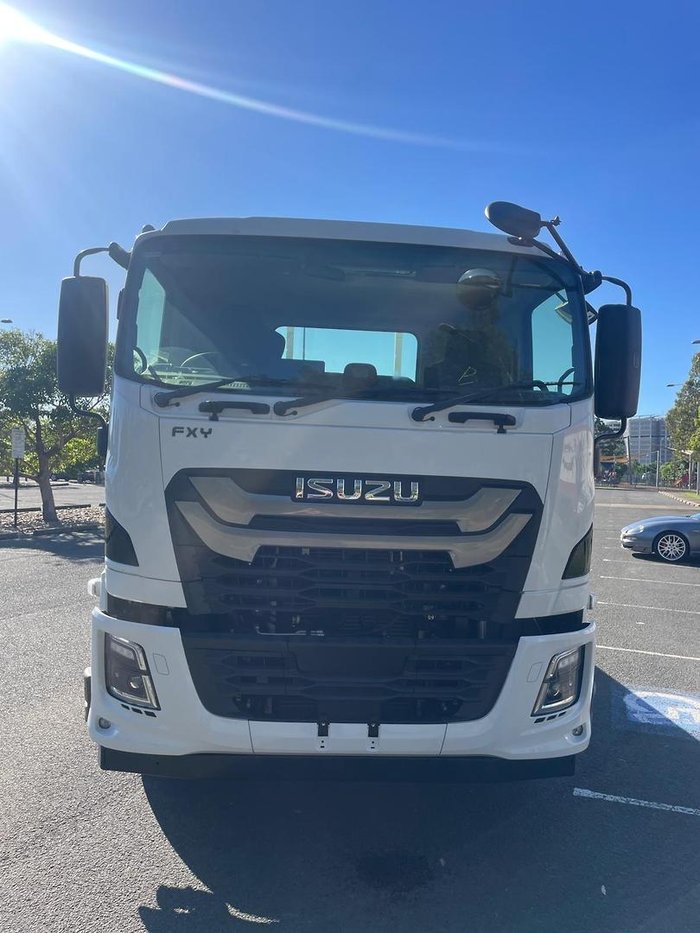

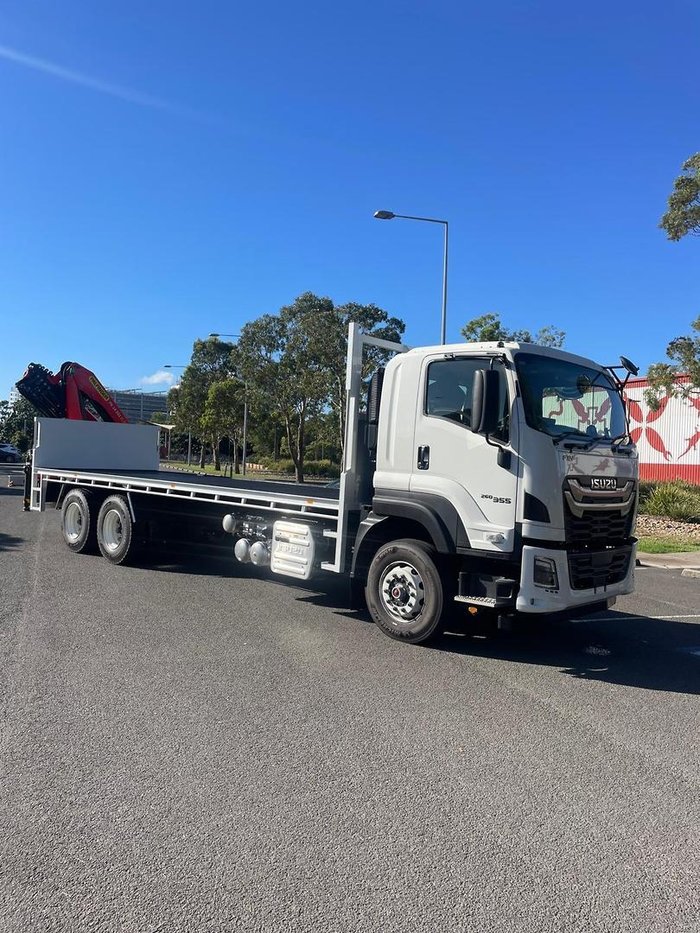

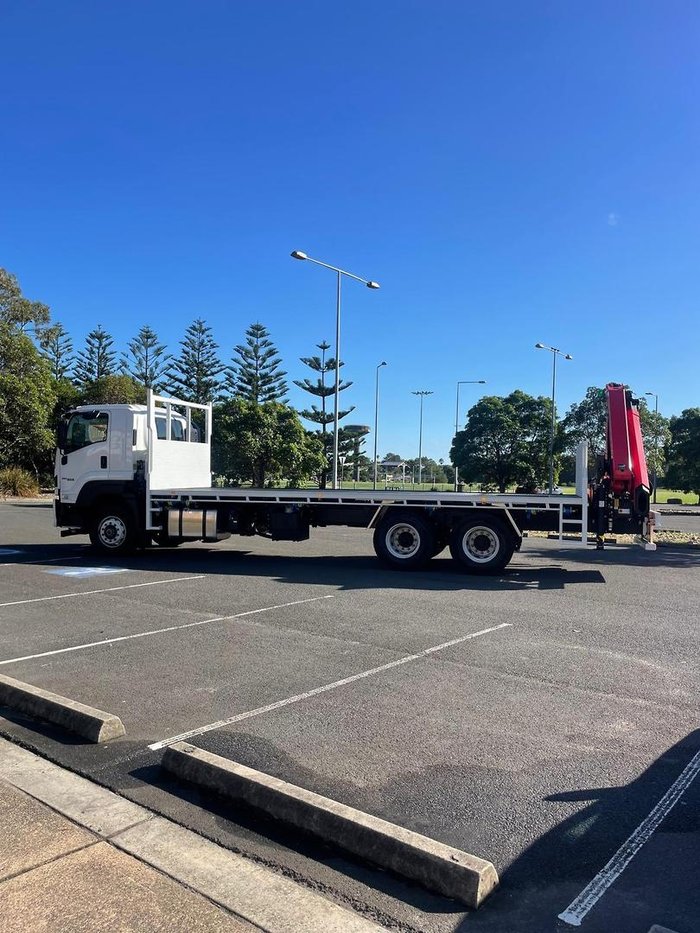

2025 Isuzu F Series FXY 260-355 AT R63

Isuzu FXY 260-355 AT R63

Engine: Isuzu 6UZ1-TCC | 9.8L 6 Cylinder Turbo Diesel

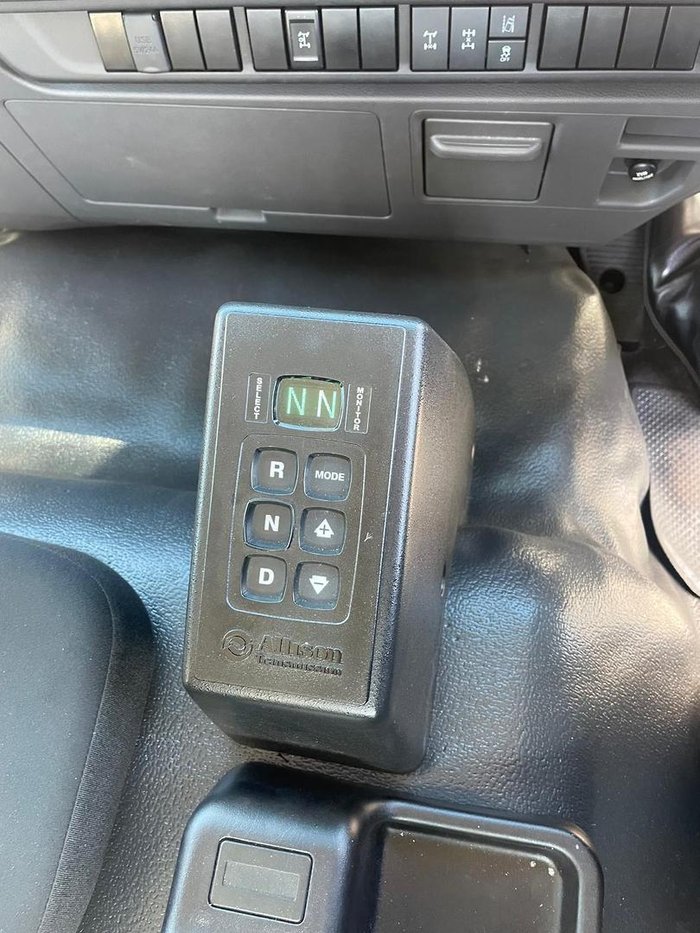

Transmission: 6 speed Allison AUTO 3500 GEN 6

Power: 355 Hp | 259 kW @ 2000 RPM
Torque: 1437 Nm @ 1400 RPM

Weight Rating: GVM: 26,000 Kg GCM: 45,000 Kg
Wheelbase: 6,300 mm

Drive Type: 6x4

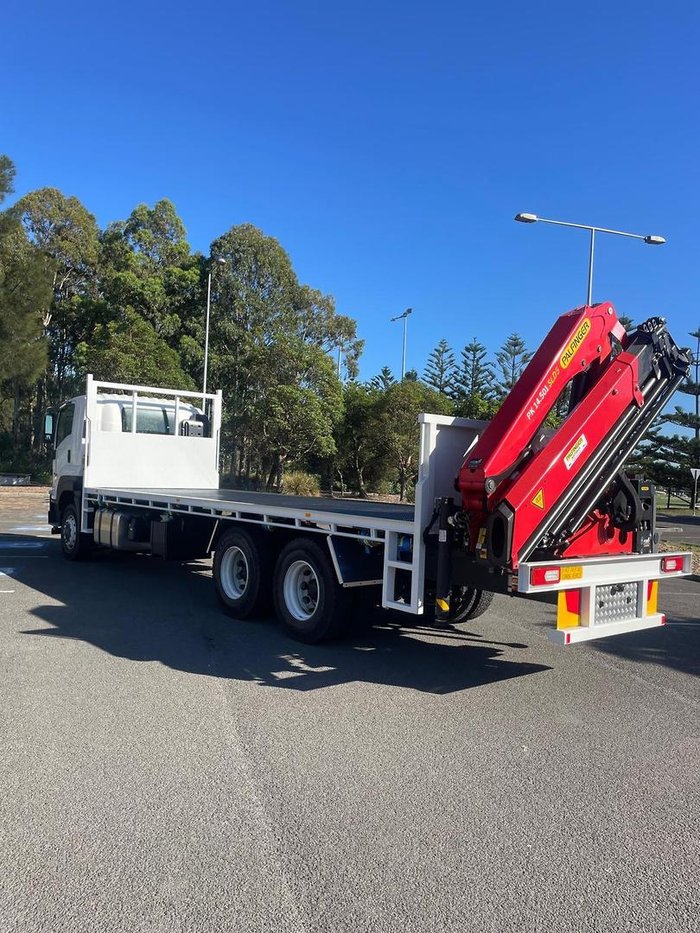

Strike Services Heavy Duty Steel Tray

Tabletop Body Approx 7840mm (Overall) x 2480mm W
(Tray height from ground 1305mm )
Tray Body Constructed with 3mm Tread Plate Floor
Paint in 2 pac white with Black Tray

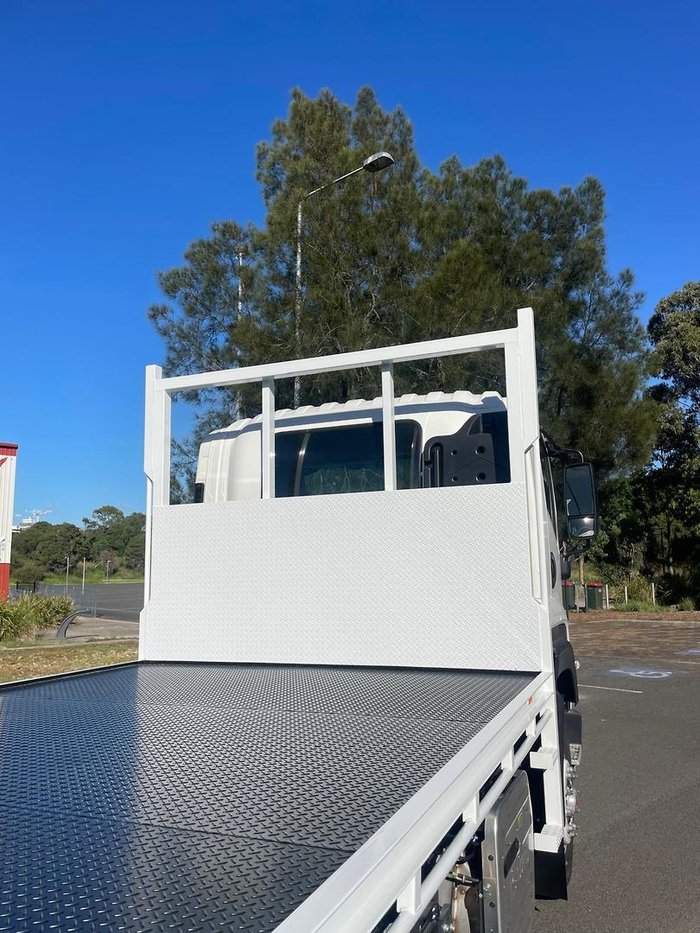

Headboard Height - 1765mm (Top of Cabin)
Side Coaming -
Cross Member RHS
Runners Channel
Mudgaurds
Driver and Passenger Front Step
Driver and Passeger Rear Step
Rope Rail

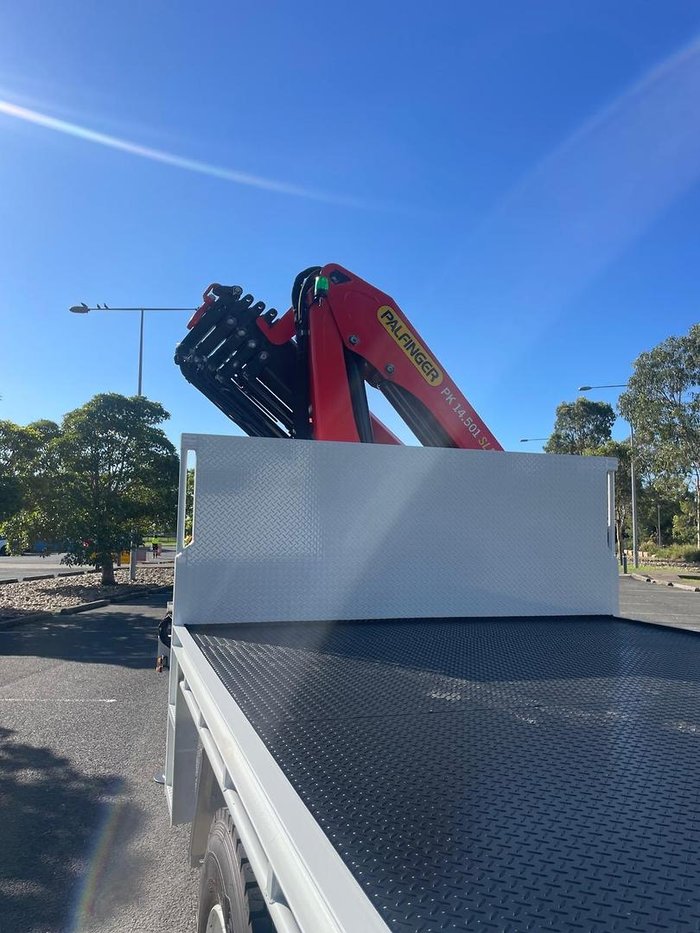

Rear Headboard with Grab rail

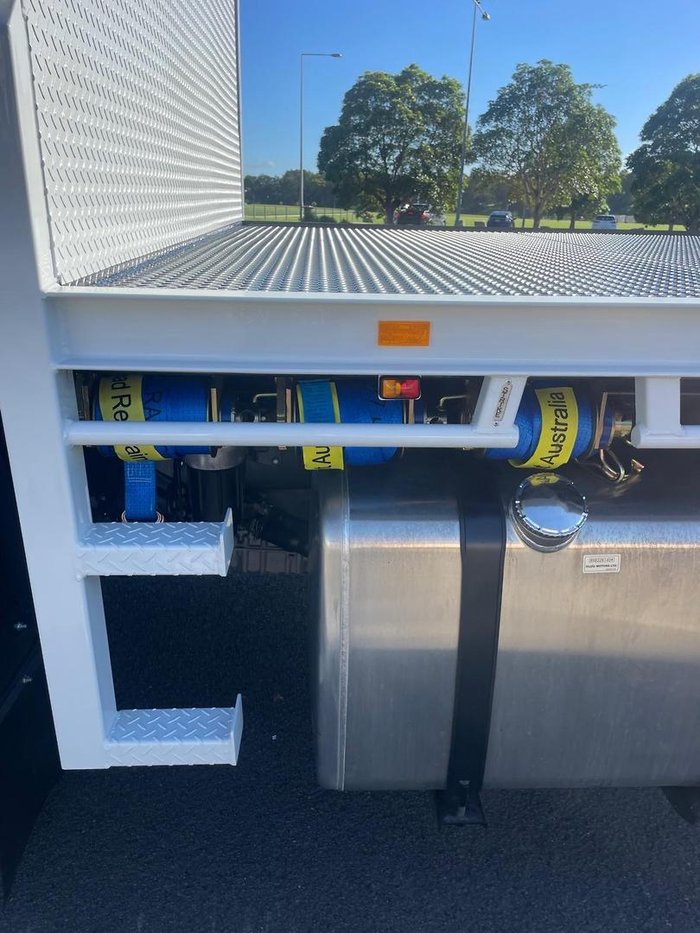

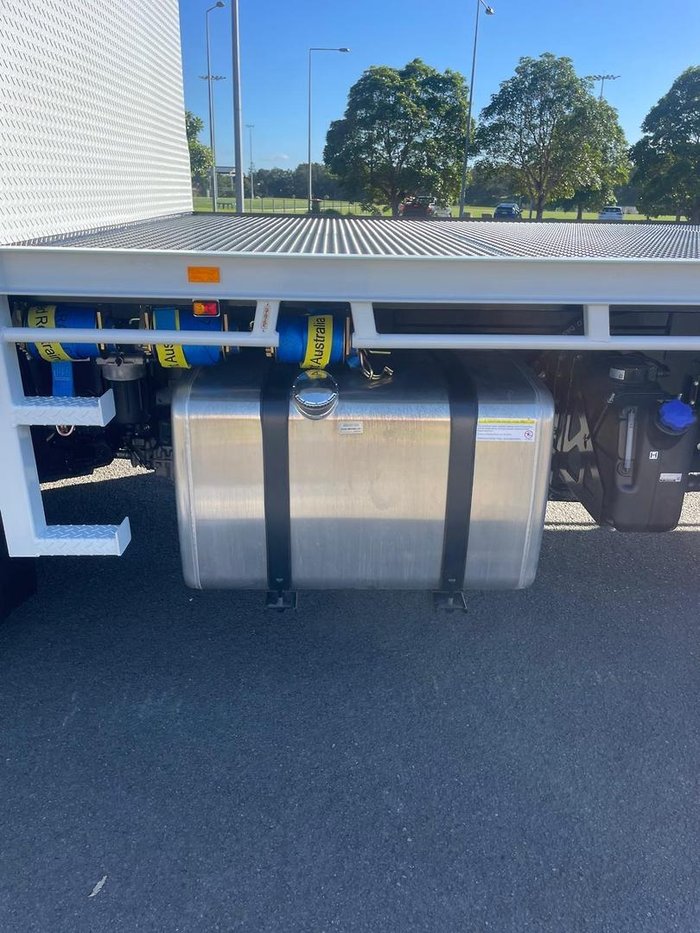

7 x Winches in track on Passenger Side

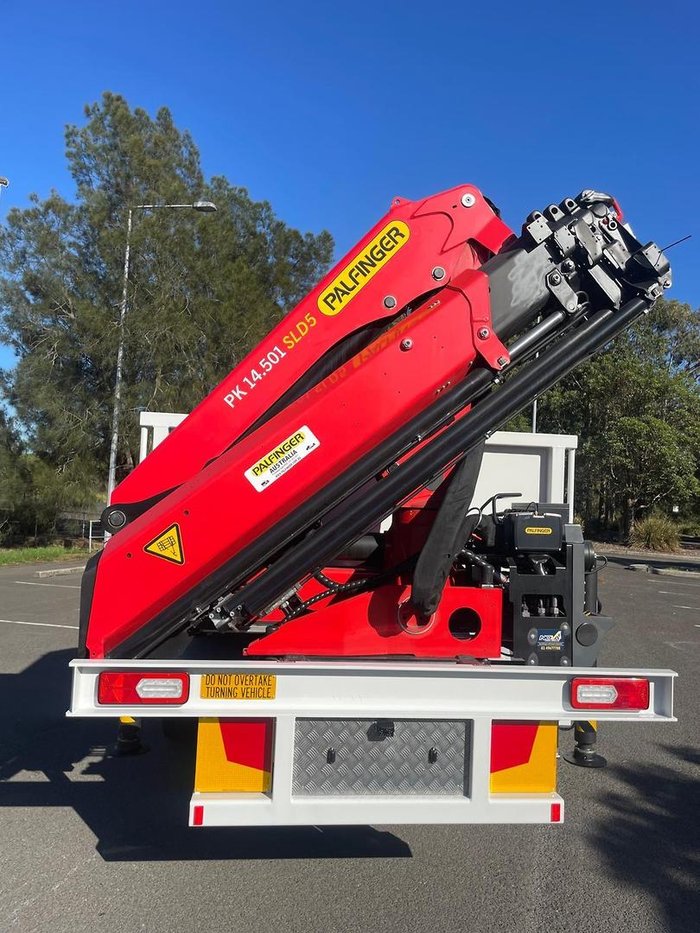

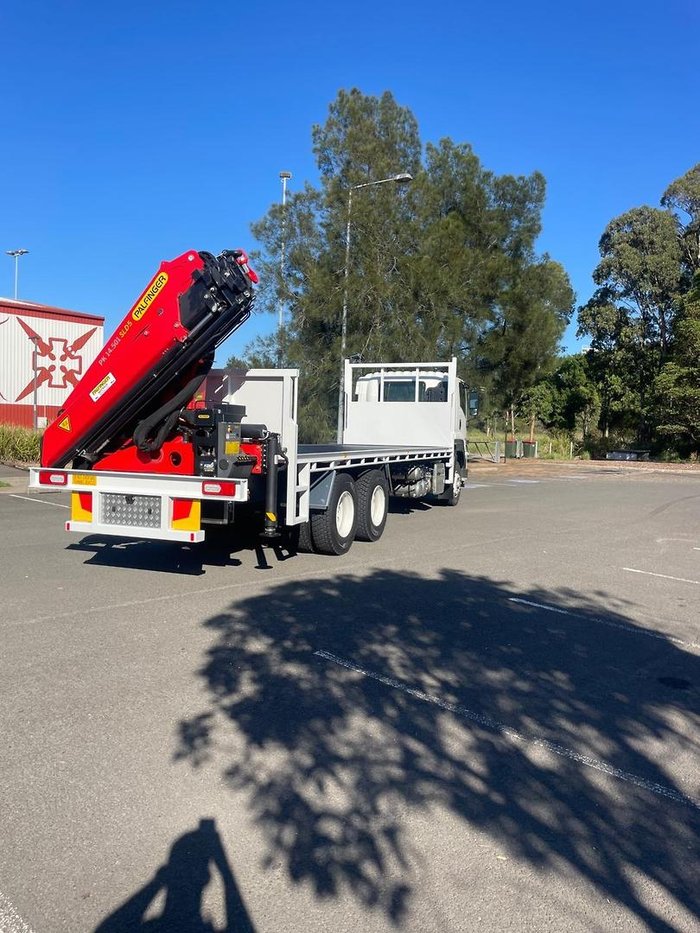

Palfinger PK 14.501 SLD 5 D R3XH
-
Unit features:
-
Lifting moment 142.4kNm (14.5mt). Crane mass is 2235 kg.
-
Specification according to EN12999:2011/AS; Classification HC1 HD4/S2 in EN12999
-
(HPSC-E) Stability monitoring system. Fully variable outrigger positions with real data algorithm.
-
PAL40 overload protection and emergency cut-off
-
Radio remote control with Linear levers (optional: joystick)
-
Single linkage boom-system with Single Link Plus 15°
-
High extension speed by applying return oil utilization and oil passage through the cylinders
-

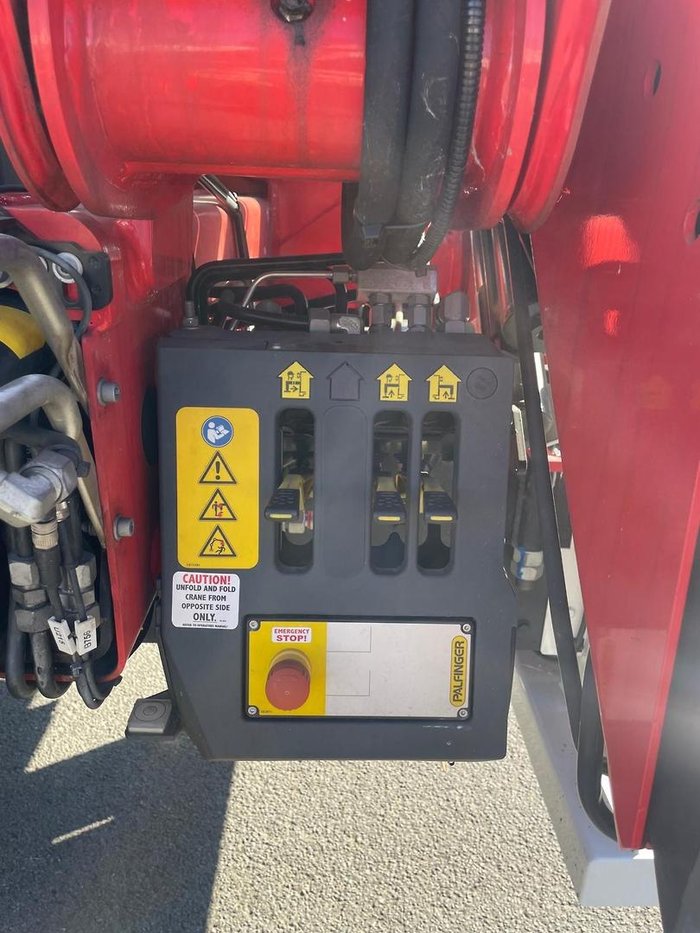

Stabilizer control with operated check valves on the stabilizer rams
-

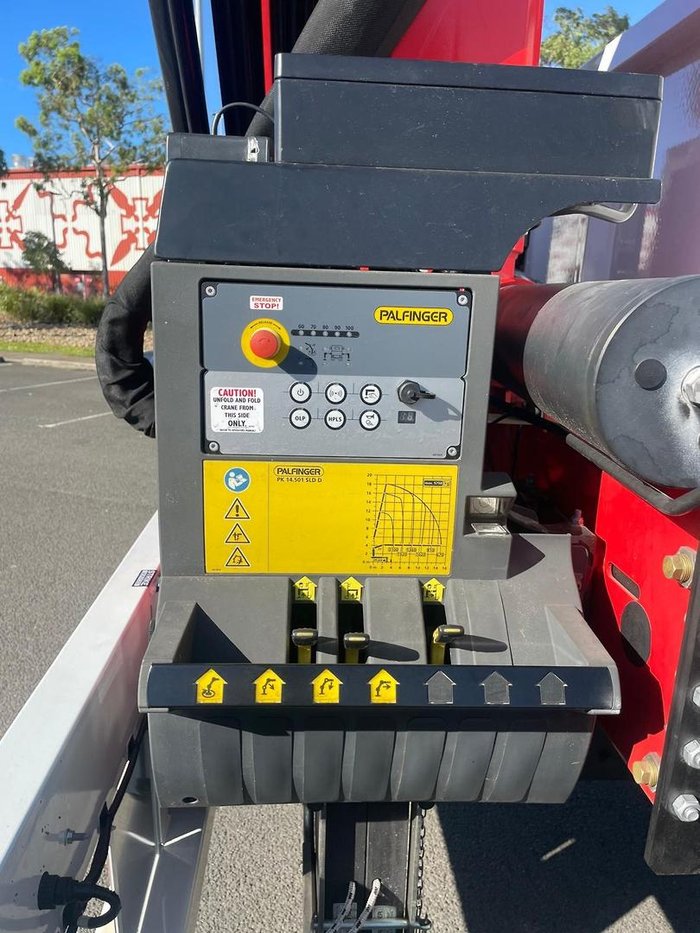

Box level on both control panels
-
Electronic HPLS with automatic activation
-
Acoustic warning (102dB) incl. push-button, wired on the crane
-
Slewing angle 420°. Rack and pinion slewing system.
-
Load holding valve on slewing, inner, outer and extension boom cylinder
-
(AUSW) Check of outrigger transport position
-
(TRAN2) Check of crane transport position - crane boom resting on the platform.
-
Digital hour counter with indication of service intervals
-
Footpad holders.
-
Oil cooler, mounted.
-
95 L crane mounted hydraulic oil tank or 140 L chassis mounted oil tank.
-
(RALSTD) Painting RAL3020
-
Standard voltage 24V

Intelligent Safety Features:

Advanced Emergency Braking (AEB)
Adaptive Driving Beam (ADB)
Anti Lock Braking System (ABS)
Anti Skid Regulator (ASR)
Attention Alert System (AAS)
Auto Lighting System (ALS)
Cab Tilt Warning (CTW)
Customizable Speed Limiter (CSL)
Distance Warning System (DWS)
Electronic Stability Control (ESC)
Forward Collision Warning (FCW)
Full Speed Adaptive Cruise Control (FACC)
Intelligent Speed Limiter (ISL)
Lane Departure Warning (LDW)
Lane Keeping Assist (LKA)
Traffic Movement Warning (TMW)
Traffic Sign Recognition (TSR)

Standard Features:

ECE-R29 Cab with Side Anti-Intrusion Beams
Driver and Front Passenger Airbags
Driver and Front Passenger Seatbelt Pretensioners
Door Mounted Cornering Lamps
Overhead storage compartments with doors
ADR 80/04 (Euro VI) compliant
SCR (Selective Catalytic Reduction)
DPD (Diesel Particulate Diffuser)
Engine Compression Brake (I-Brake)
Isri 6860/875 NTS2 Air Suspension Driver's Seat
Bi-LED Headlamps with Daytime Running Lamps
MyISUZU Co-Pilot Audio Visual Unit
Electro-hydraulic cab tilt to 45 degrees
Heated & powered exterior main mirrors
with flat glass and additional independently
adjustable convex spot mirrors
Auto windshield wiper system, wet wipers
Adaptive Driving Beam (ADB) and Daytime Running Lamps
LED tail lamps
Front LED foglamps
Passive Entry and Start System (PESS) with
remote Central locking and Immobiliser
Air Conditioning Auto control



Warranty:
6 Year Standard Warranty | 500,000 Km | 8,000 Hours (Whichever Comes First)

Roadside Assistance:
6 Year Roadside Support 24/7 | Unlimited Km

Servicing package taylor made to suit customer application available upon request

Please Note: Warranty period may differ depending on harsh application (4x4, AWD, Agitator, Compactor, etc.)
