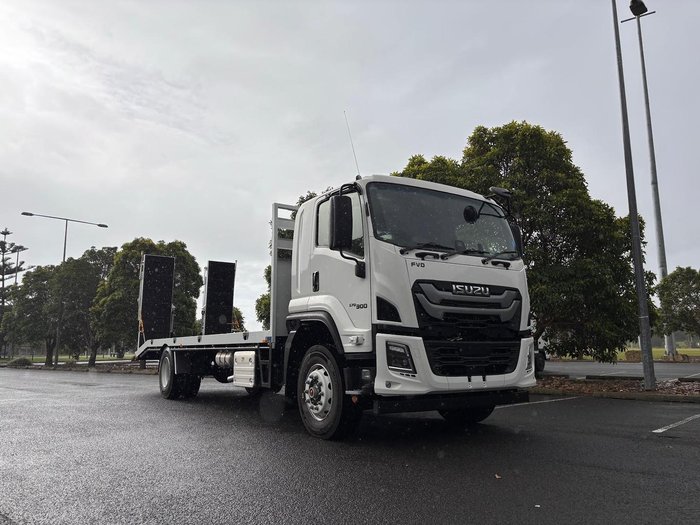

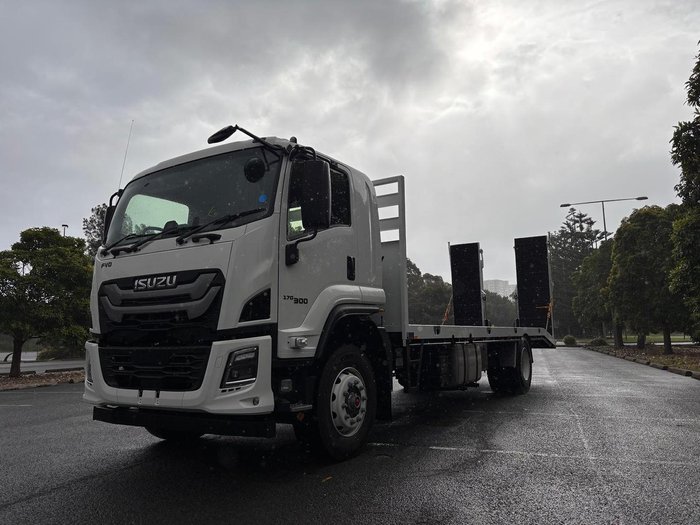

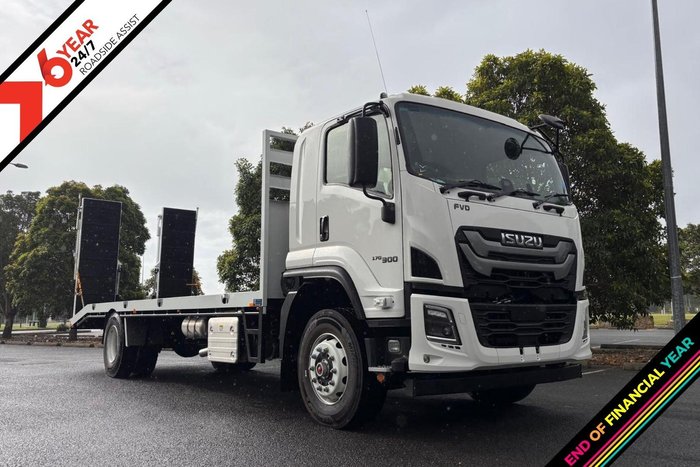

2025 Isuzu F Series

ISUZU FVD 170-300 AT R60

Heavy Duty Cab Chassis


VEHICLE OVERVIEW

Model: FVD 170-300 AT R60
GVM: 17,000 kg
GCM: 32,000 kg
Wheelbase: 6,000 mm
Engine: Isuzu DB6A-TCC 6 Cylinder Turbo Diesel
Power: 221 kW @ 2,200 rpm
Torque: 984 Nm @ 1,000 - 2,100 rpm
Transmission: Allison 3000 GEN 6 6-Speed Automatic Transmission (AT)

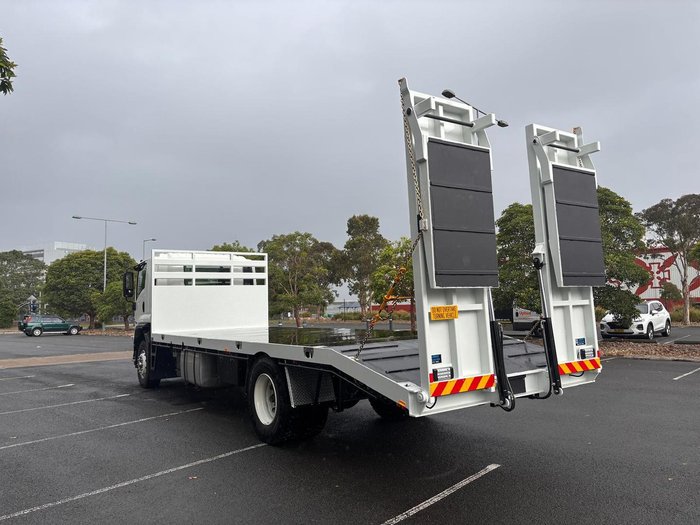

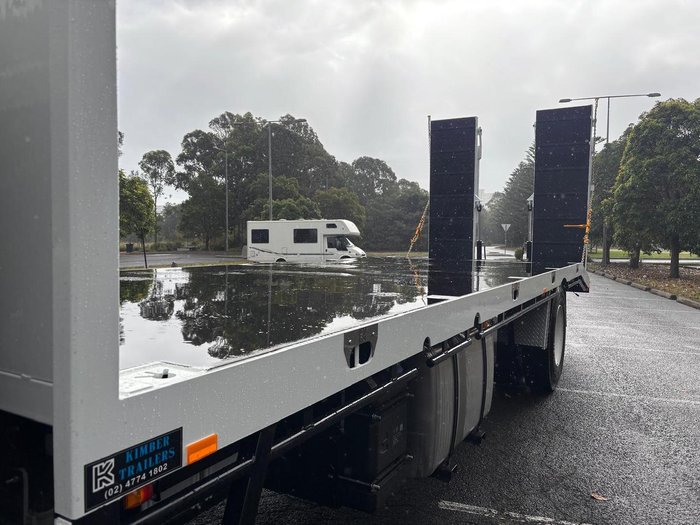

KIMBER TRAILERS CUSTOM BEAVERTAIL

7850mm External length
6500mm Internal deck space.
1370mm Internal length beaver platform length.
Front loading board to suit cab
Flush 100PFC coaming rail

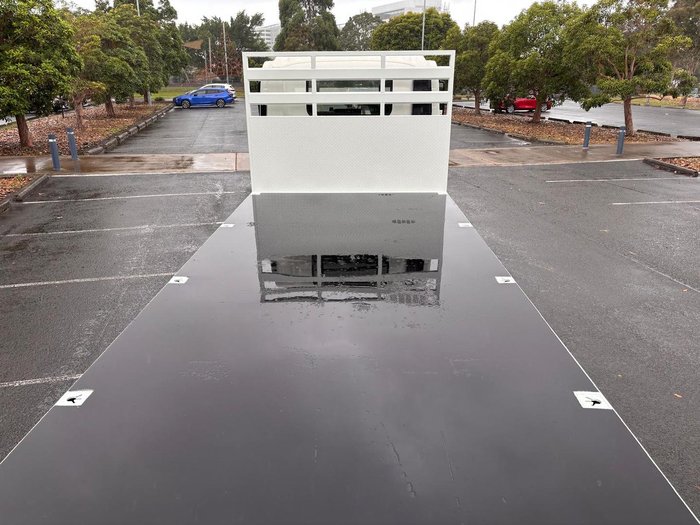

4MM Hardox Hi tensile floor
6 tie points in floor each side
Rope rails fitted
Aluminum checker plate guards

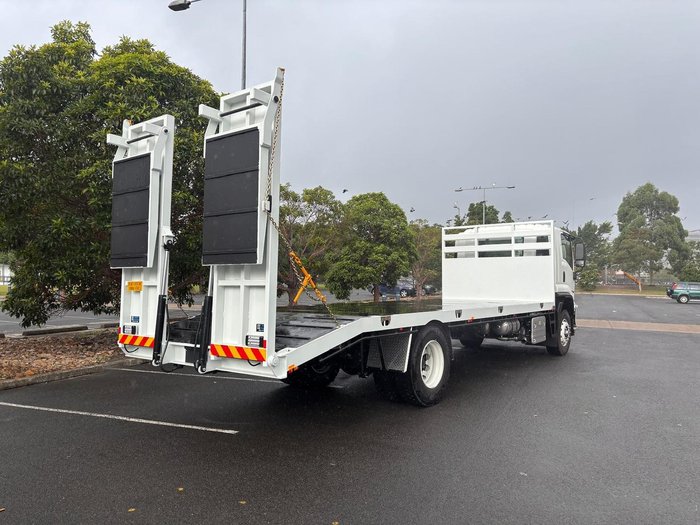

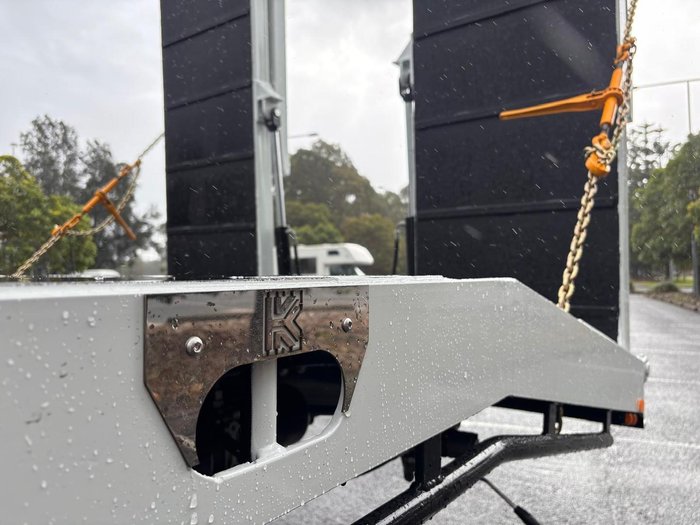

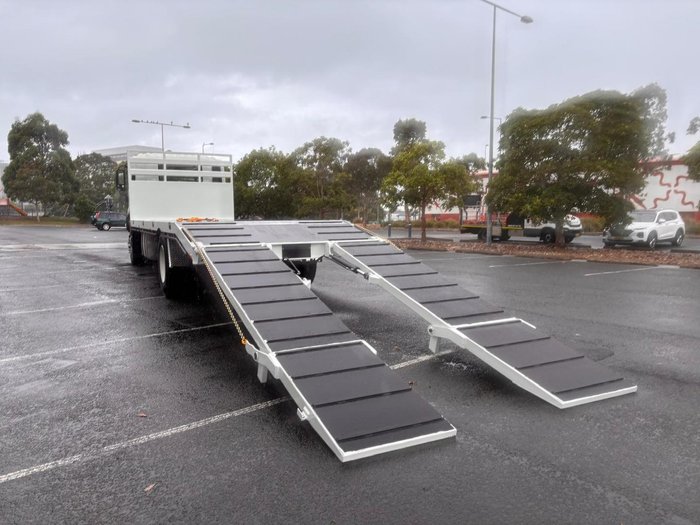

Hydraulic ramps 2500mmL x 750mmW
Powerpack fitted

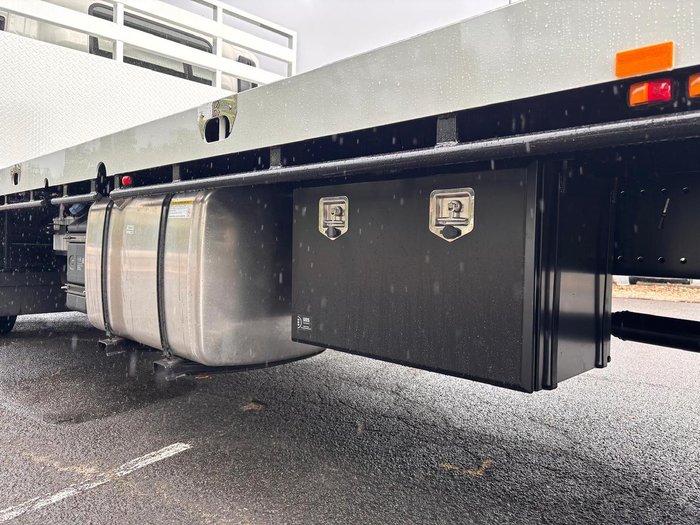

Black powder coated Underbody Lockable Toolbox 800mmx500mmx500mm
5 LED clearance lights fitted each side of body
2 LED blinkers fitted each side of body
LED taillights
Etch primed and finished in Nason 2K paint
Blue plate compliance
150mm flat sides.
Added tie points in coaming.

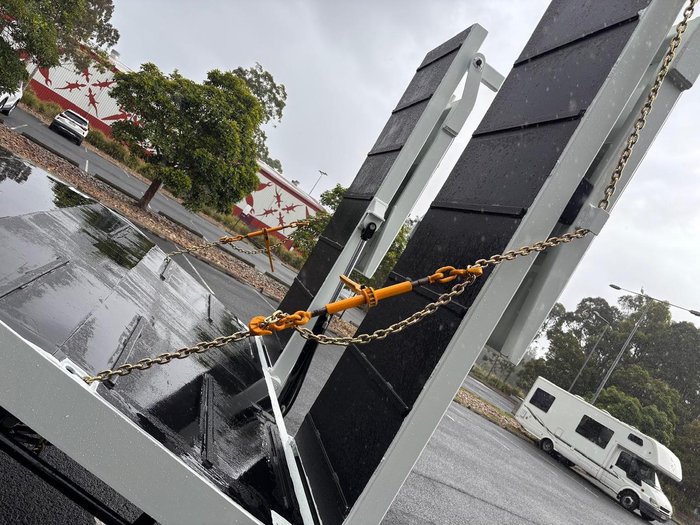

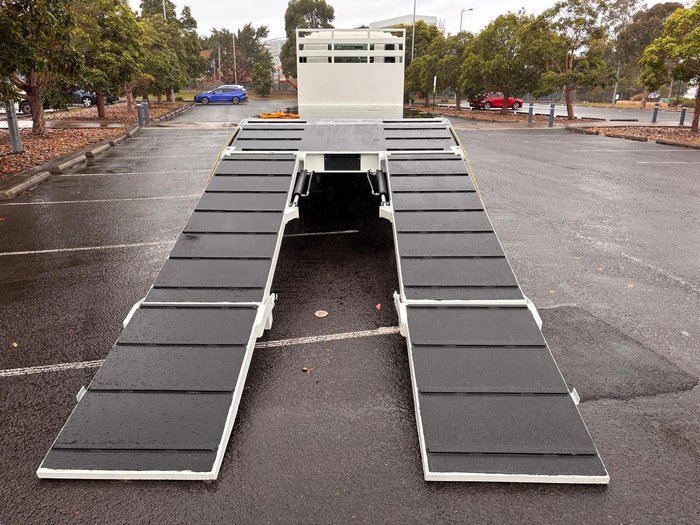

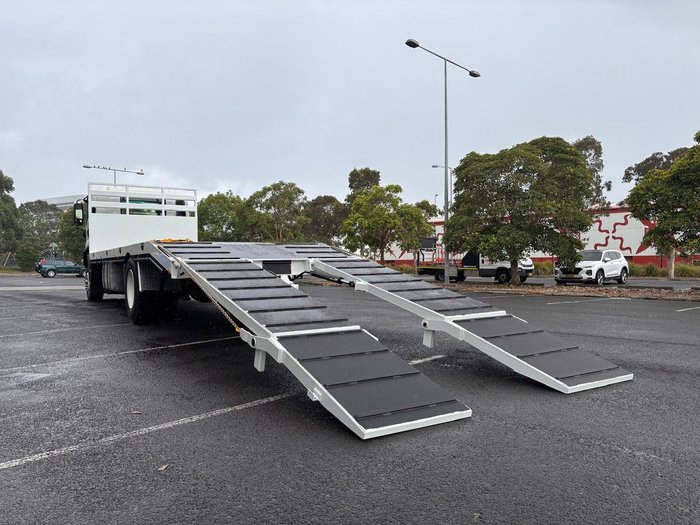

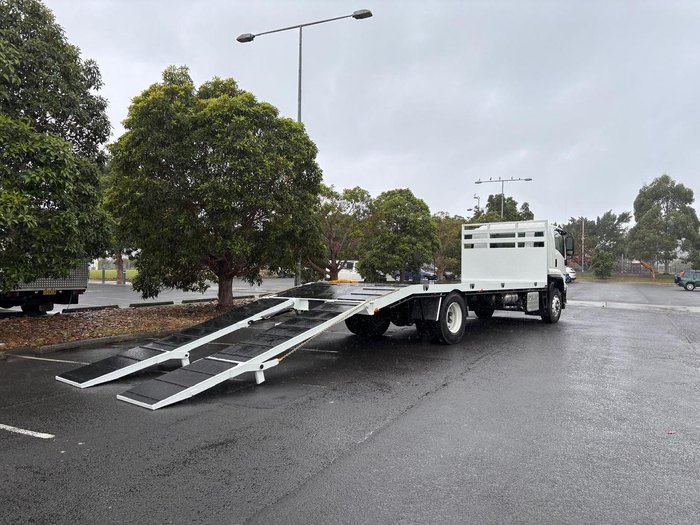

BI FOLD ramps
Flip ramp 1200L X 750W w/3mm checker plate
4MM Hardox high tensile floor.
Body built to all RMS Requirements.


FEATURES

ADR 80/04 (Euro VI) Compliant
Adaptive Driving Beam (ADB)

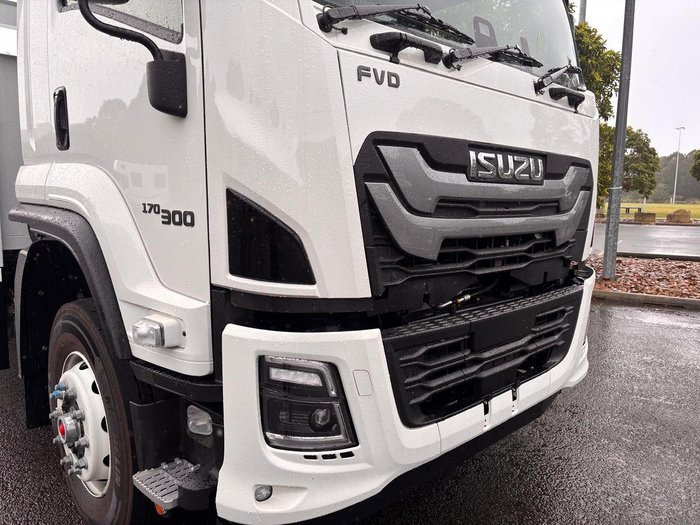

Bi-LED Headlamps with Daytime Running Lamps (DRL)
ECE-R29 Cab with Side Anti-Intrusion Beams

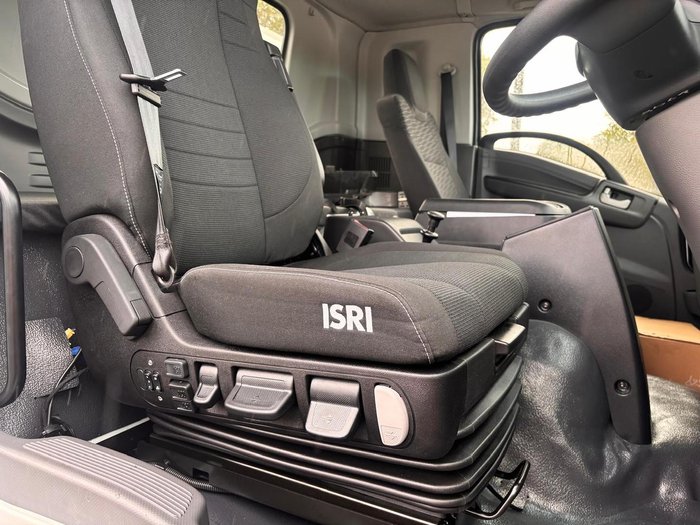

ISRI 6860/875 NTS2 Air Suspension Driver's Seat
Engine Compression Brake (I-Brake)


CHASSIS

Front Axle Capacity: 7,300 kg
Rear Axle Capacity: 10,400 kg
Fuel Tank: 200 L Steel
AdBlue Tank: 65 L High-Density Polyethylene
Front Axle Tyres: 315/70R22.5 156/150L Michelin X Multi Energy Z2
Rear Axle Tyres: 11R22.5 148/145L Michelin X Multi D+


CABIN

Automatic Climate Control

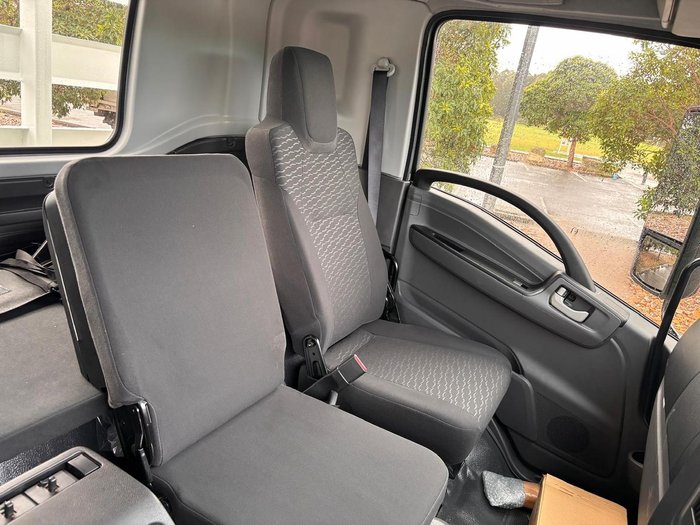

ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation

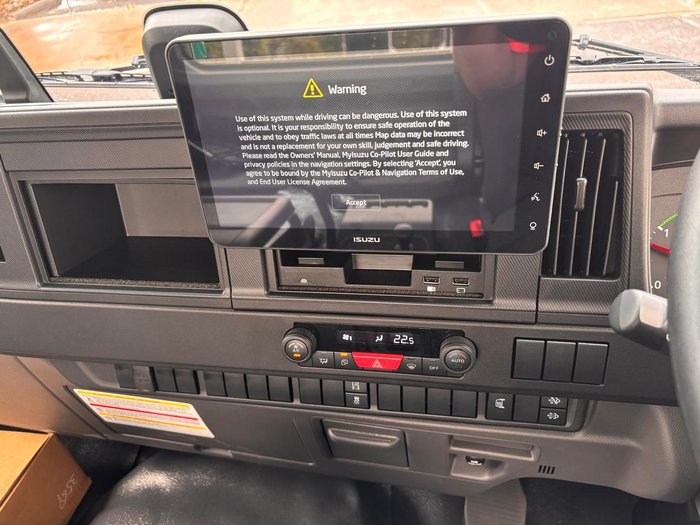

10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with Daytime Running Lamps (DRL)
LED Front Fog Lamps
LED Tail Lamps
Reverse Alarm


WARRANTY & SERVICE

Chassis Warranty: 6 Years / 500,000 km / 8,000 Engine Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
