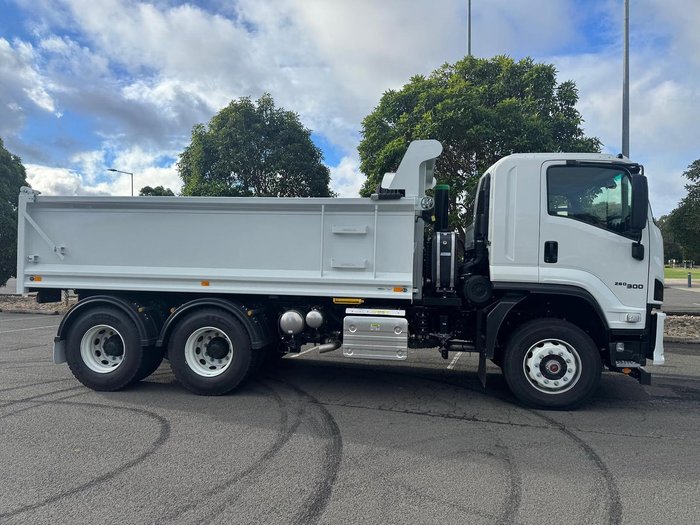

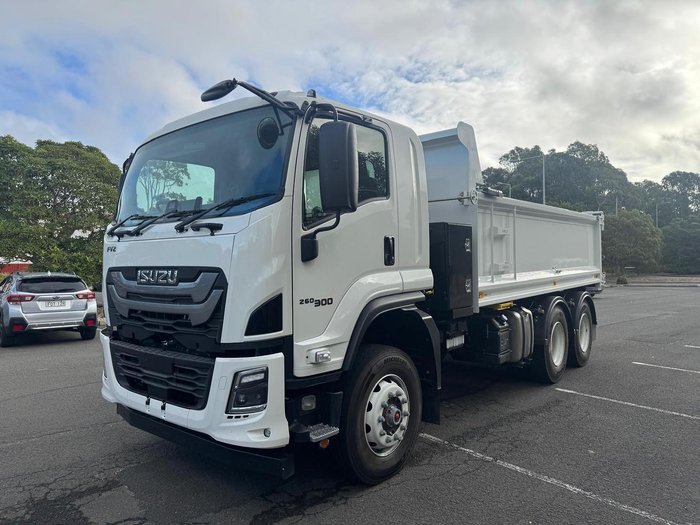

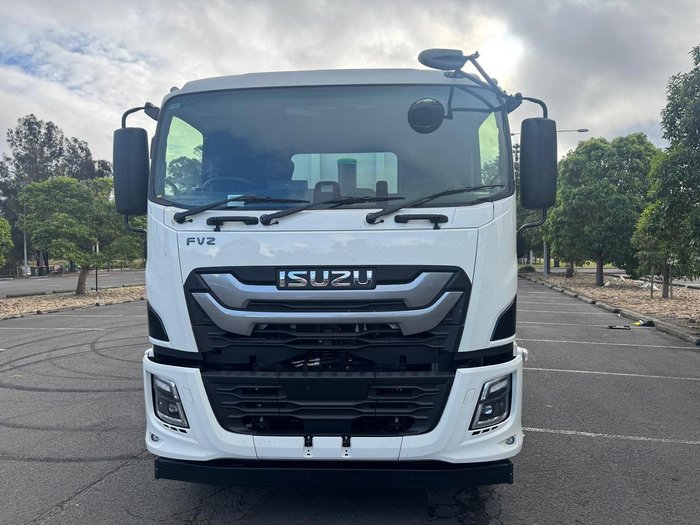

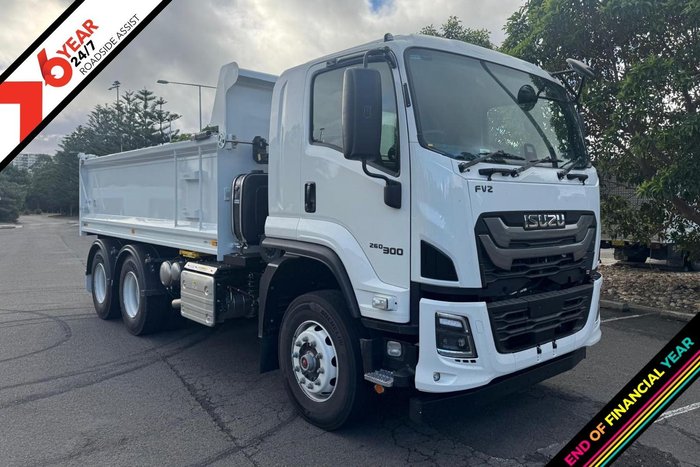

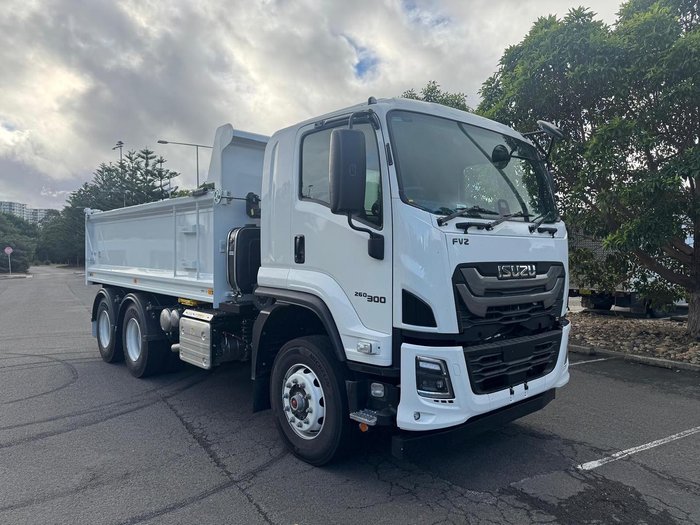

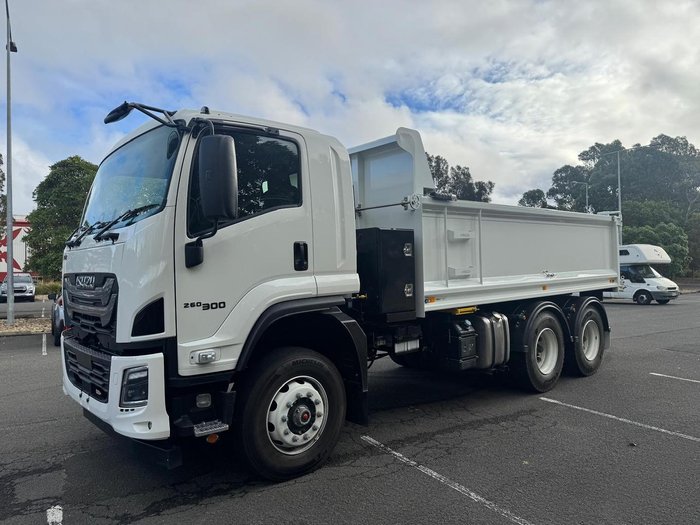

2025 Isuzu F Series

ISUZU FVZ 260-300 AT R46

Heavy Duty 6x4 Cab Chassis

VEHICLE OVERVIEW

Model: FVZ 260-300 AT R46
GVM: 26,000 kg
GCM: 36,000 kg
Wheelbase: 4,595 mm
Engine: Isuzu DB6A-TCC 6 Cylinder Turbo Diesel
Power: 221 kW @ 2,200 rpm
Torque: 984 Nm @ 1,000 - 2,100 rpm

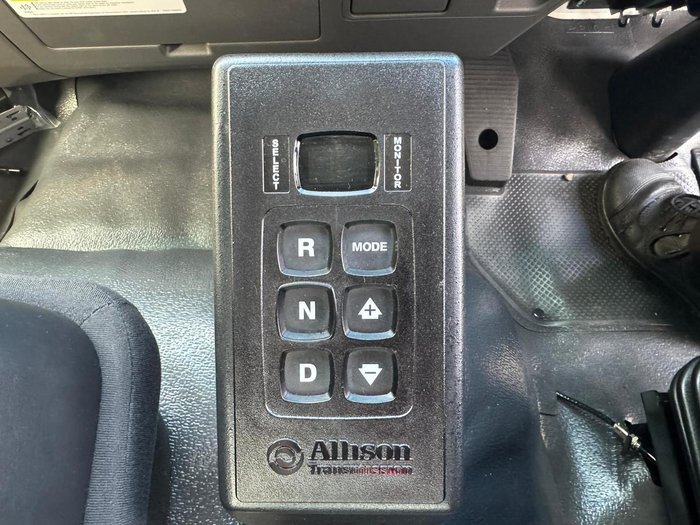

Transmission: Allison 3500 GEN 6 6-Speed Automatic Transmission (AT)

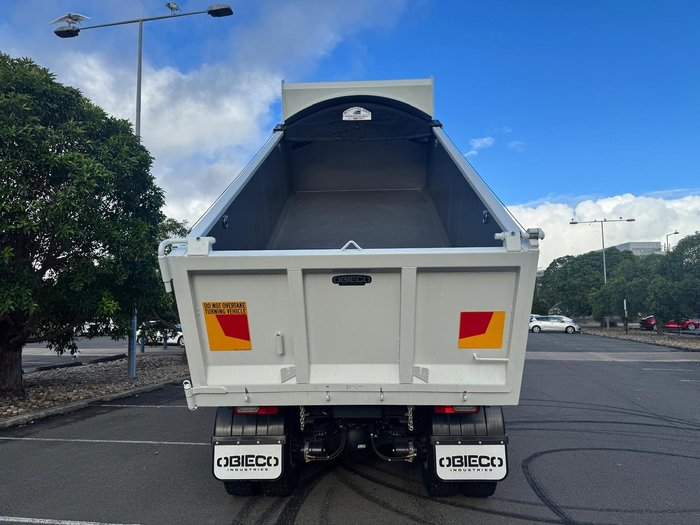

OBEICO HEAVY DUTY TIPPER BODY

BODY DIMENSIONS - 5000MM External X 2400MM External
FIXED SIDES 1150MM HIGH.
TIPPER SETBACK 500MM FROM CAB TO ENABLE FRONT MOUNTED HOIST.
HEAVY DUTY H STYLE SAFETY PROP FITTED TO SUBFRAME
GUNNEL (BOTTOM) - SPECIAL TAPERED RHS SECTION
FLOOR - 5MM HARDOX 450 GRADE WITH TAPERED CORNERS
SIDES - 5MM HARDOX 450 GRADE 1200MM HIGH FIXED SIDES

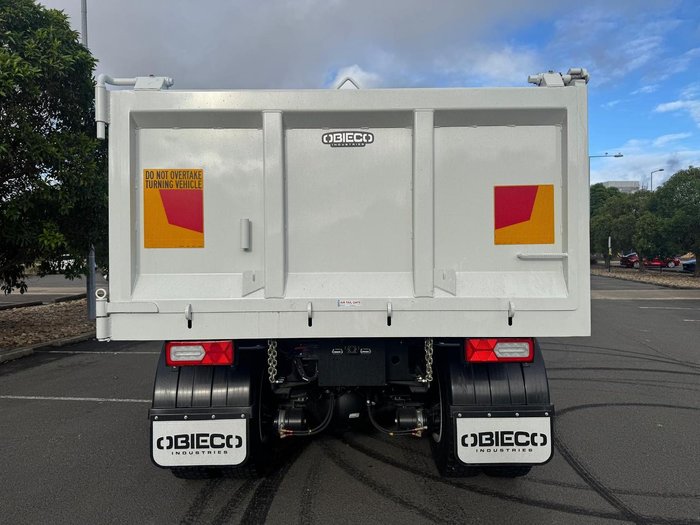

TAILGATE - 1300MM HIGH H/D TOP & SIDE HINGE, AIR RELEASE
SPREADER CHAINS - ADJUSTABLE SPREADER CHAINS FITTED
LOADING BOARD - KEMBLA TYPE RHS FRAMEWORK H/D

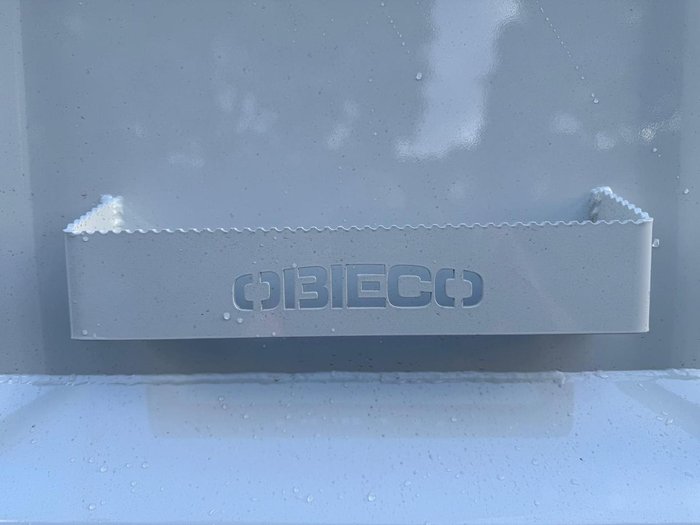

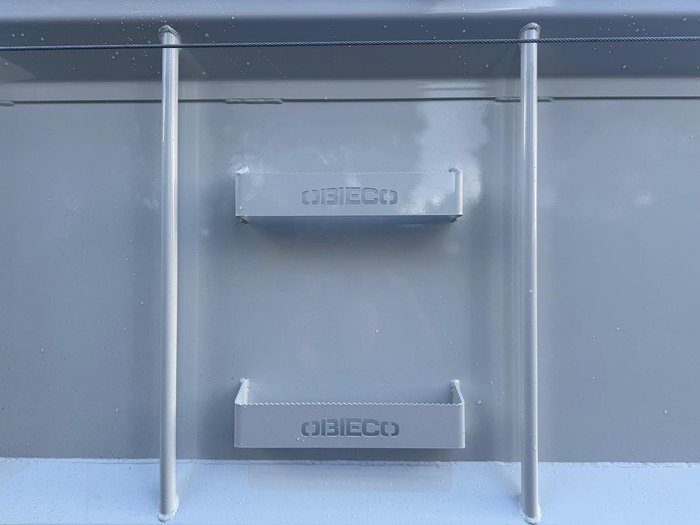

SHOVEL RACKS
STEPS FITTED WITH SAFETY TREAD STEP FITTED EACH SIDE FRONT OF BODY

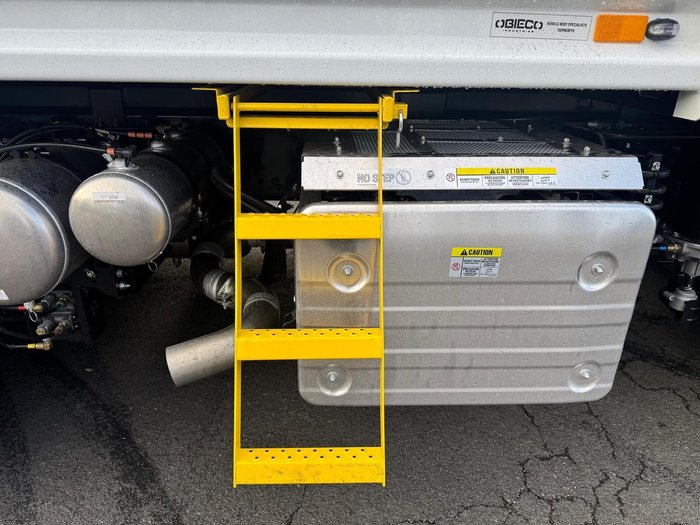

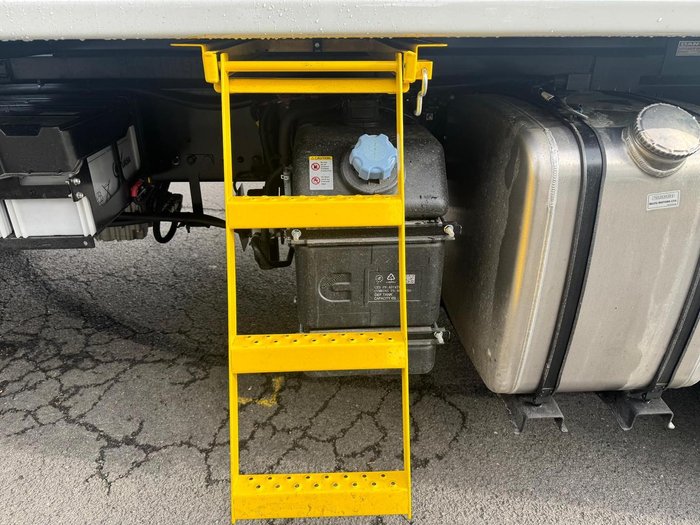

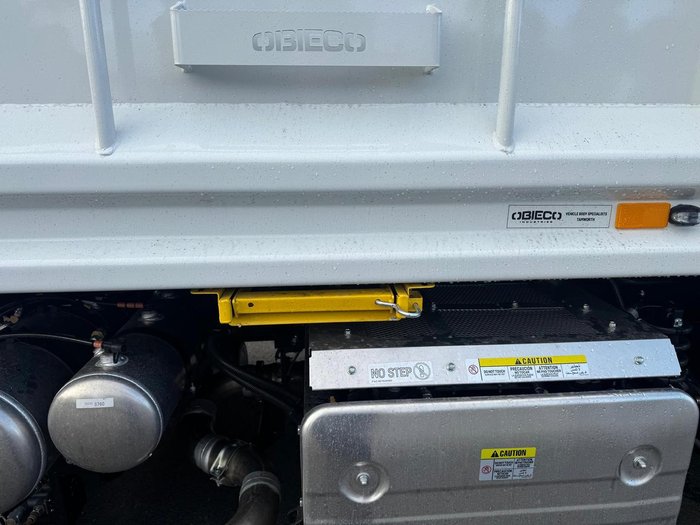

SIDE ACCESS LADDER FITTED TO TIPPER SIDE
HEAVY DUTY ROPE RAILS FULL LENGTH BOTH SIDES

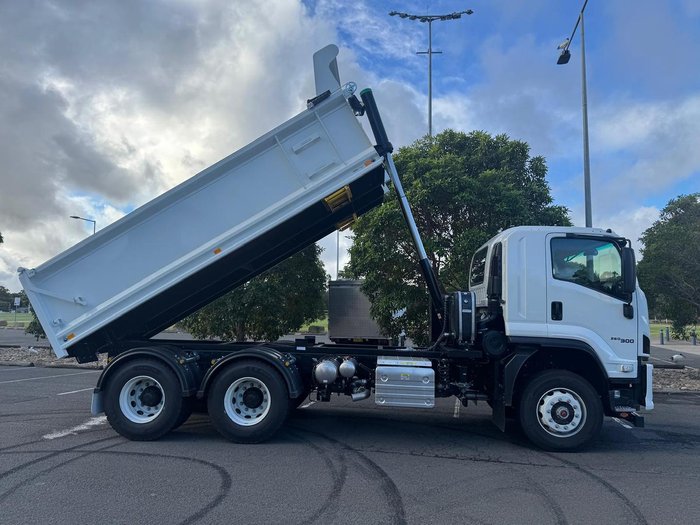

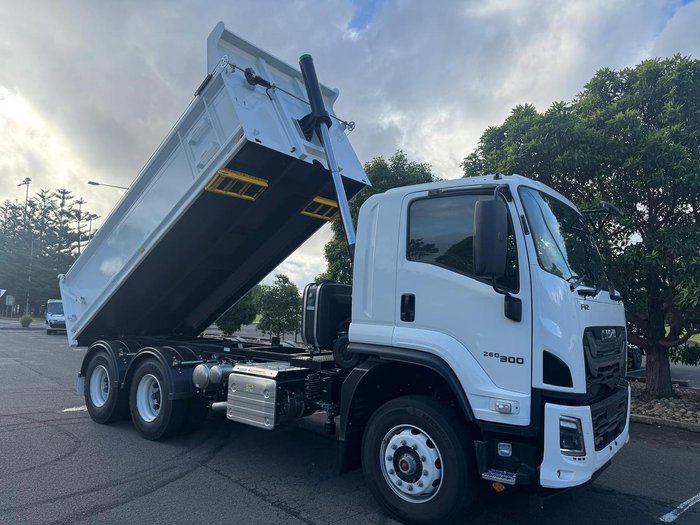

HOIST - FRONT MOUNTED HOIST

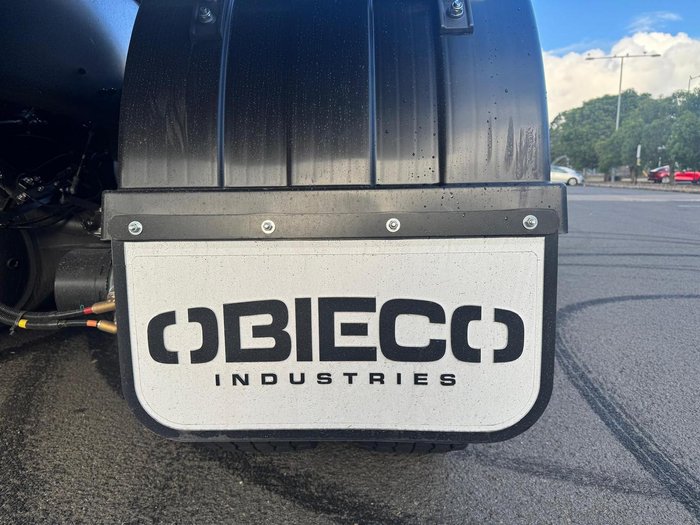

GUARDS - MUD AND LIGHT GUARDS TO NHVR,RMS REQUIREMENTS
PAINT - TWO PAK EPOXY TO MATCH CAB
VSCCS ENGINEERS CERTIFICATE - FITTED WITH BLUE PLATE

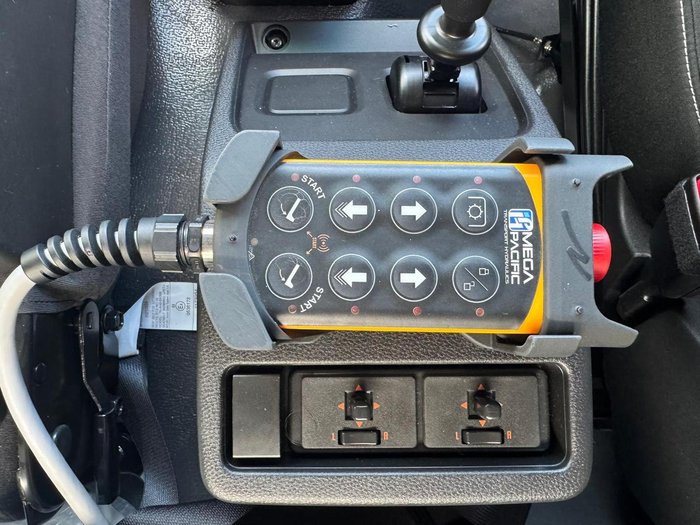

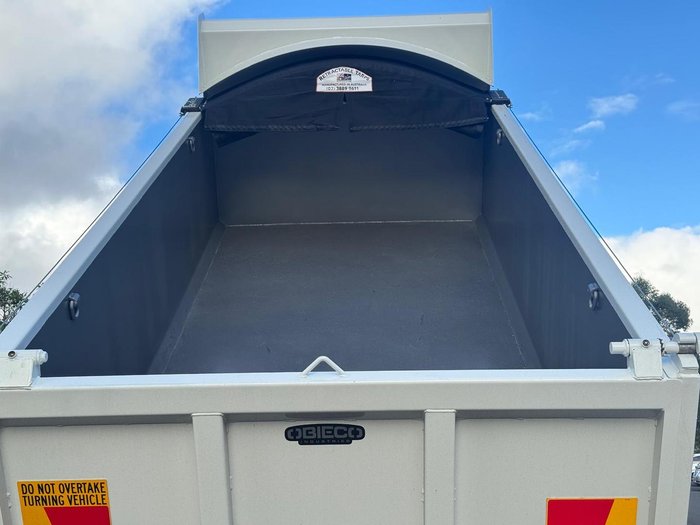

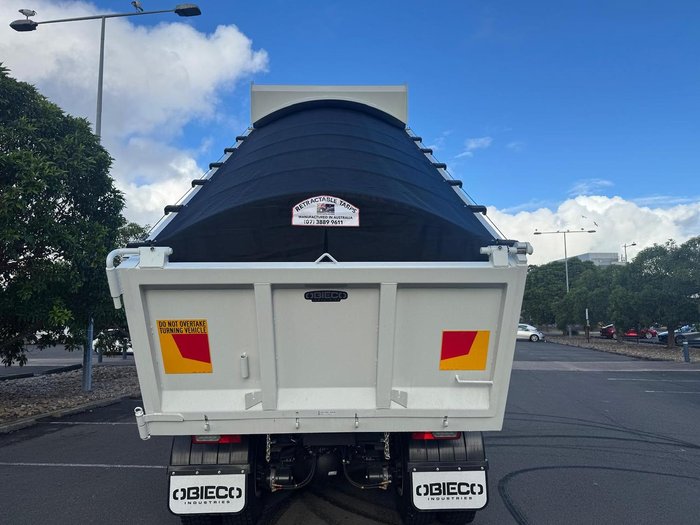

TARP, ELECTRIC OPERATED WITH IN CAB CONTROLS

FEATURES

ADR 80/04 (Euro VI) Compliant
Adaptive Driving Beam (ADB)
Bi-LED Headlamps with Daytime Running Lamps (DRL)
ECE-R29 Cab with Side Anti-Intrusion Beams
ISRI 6860/875 NTS2 Air Suspension Driver's Seat
Engine Compression Brake (I-Brake)

CHASSIS

Front Axle Capacity: 7,300 kg
Rear Axle Capacity: 20,000 kg
Fuel Tank: 200 L Aluminium
AdBlue Tank: 65 L High-Density Polyethylene
Front Axle Tyres: 315/70R22.5 156/150L Michelin X Multi Z2
Rear Axle Tyres: 11R22.5 148/145L Michelin X Multi D+

CABIN

Auto Climate Control

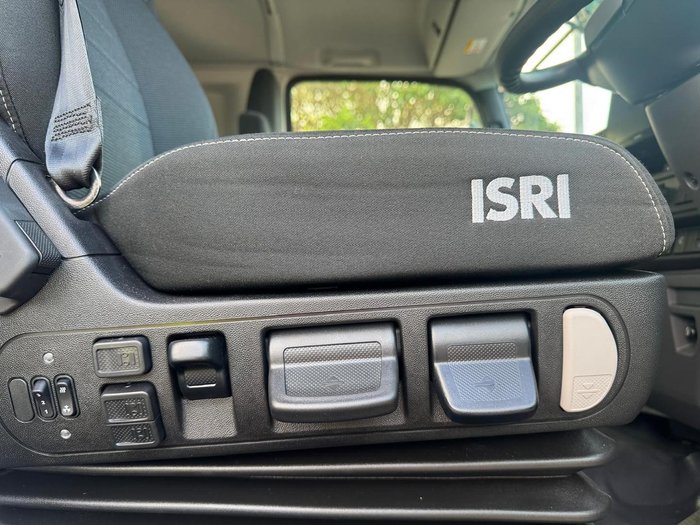

ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation
10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with Daytime Running Lamps (DRL)
LED Front Fog Lamps
LED Tail Lamps
Reverse Alarm

WARRANTY & SERVICE

Chassis Warranty: 6 Years / 500,000 km / 10,000 Engine Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
