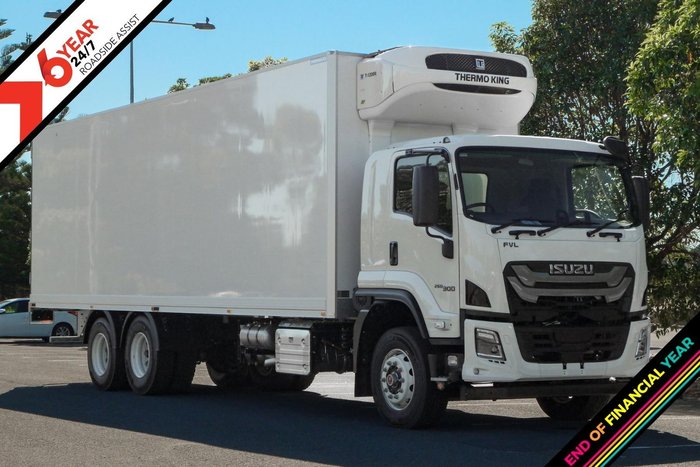

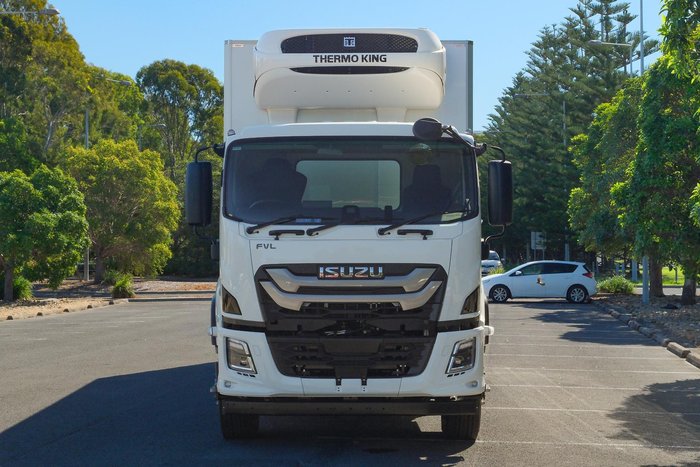

2025 Isuzu F Series

ISUZU FVL 260-300 AT R67

Heavy Duty 6x2 Cab Chassis


VEHICLE OVERVIEW

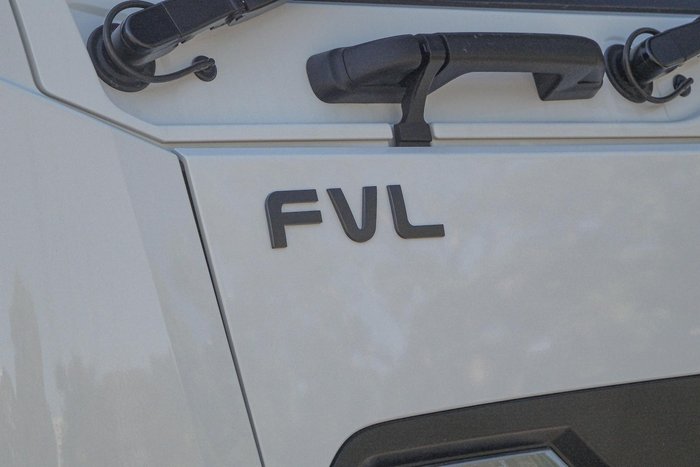

Model: FVL 260-300 AT R67
GVM: 26,000 kg
GCM: 32,000 kg
Wheelbase: 6,655 mm
Engine: Isuzu DB6A-TCC 6 Cylinder Turbo Diesel
Power: 221 kW @ 2,200 rpm
Torque: 984 Nm @ 1,000 - 2,100 rpm

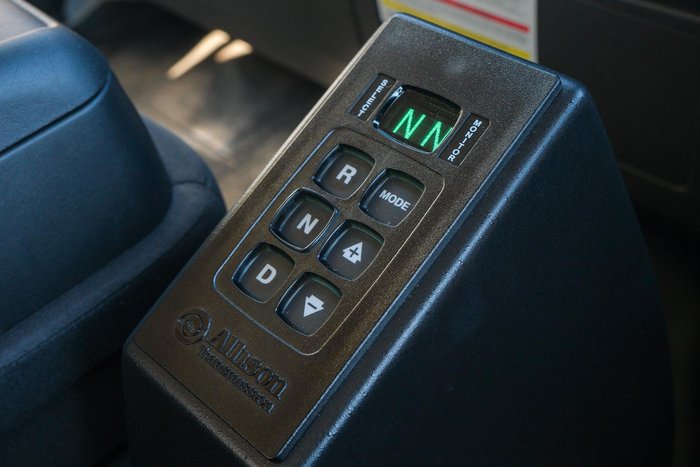

Transmission: Allison 3500 GEN 6 6-Speed Automatic Transmission (AT)

BODY SPECIFICATION

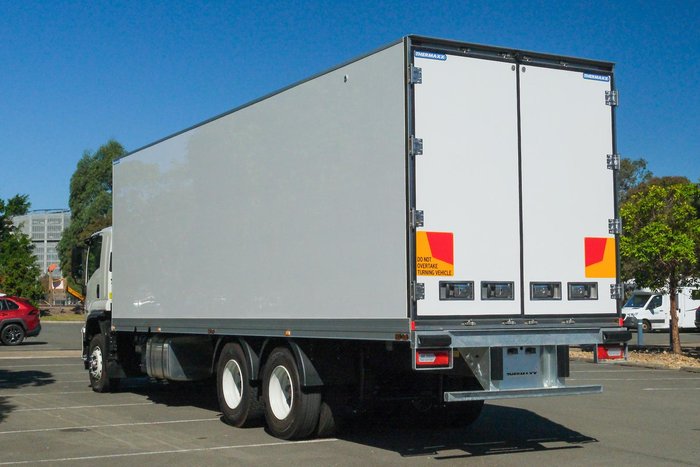

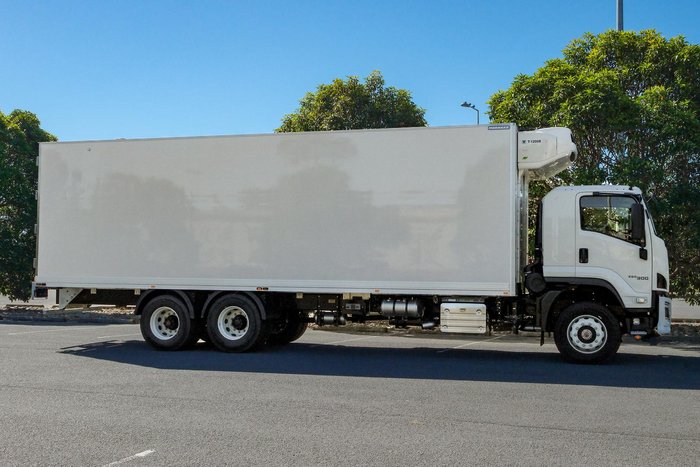

Thermaxx Advantage A9000P 14 Pallet Insulated Body
SPECIFICATIONS
K VALUE: .57 W/m2K tested to Australian Standard AS4982
EXTERNAL LENGTH: 9000mm
INTERNAL WIDTH: 2410mm
INTERNAL HEIGHT: 2450mm
PALLET LOADING: 14 Pallet Capacity
APPROX WEIGHT: 3870kg*
ROOF, FLOOR & FRONT WALL THICKNESS: 100mm
REAR DOOR THICKNESS: 80mm
SIDE WALL THICKNESS: 40mm

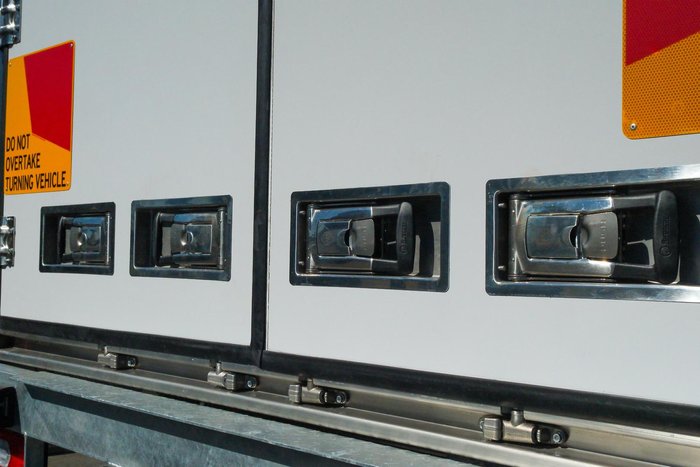

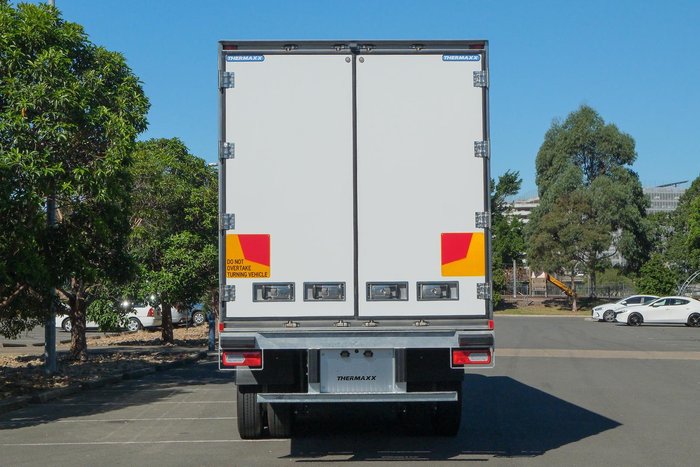

REAR DOOR: Double Rear - Left Opens First
FRONT WALL FRAME: Universal to suit Diesel Engine Drive units

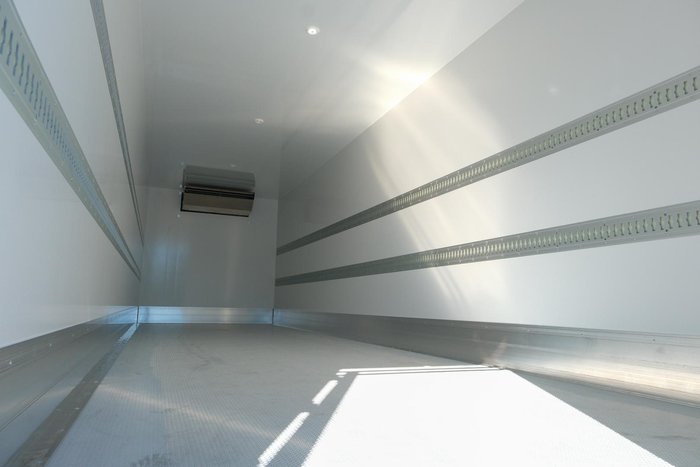

CARGO TRACK: 2 Recessed Rows at 800mm and 1400mm on
Side Walls and 2 Shoring Bars
FLOOR: One Piece Hi-Tensile Alloy Rice Grain Floor
RUNNERS: 150mm Steel Main Subframe Runners
INTERNAL LIGHTS: 4 LED Sensor Lights

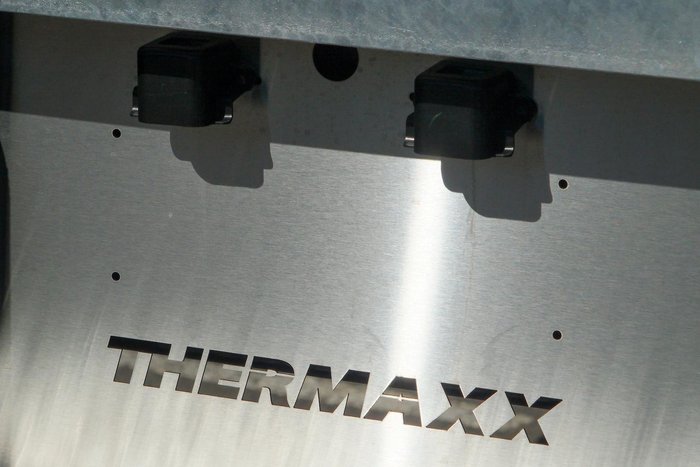

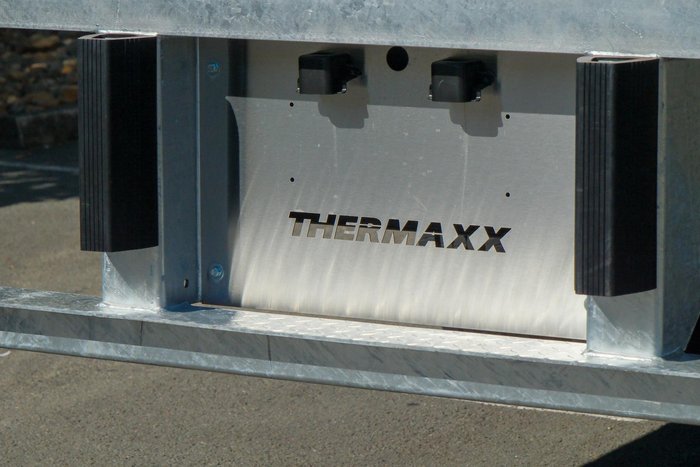

Standard Rear Galvanised Heavy Duty Crash Bar

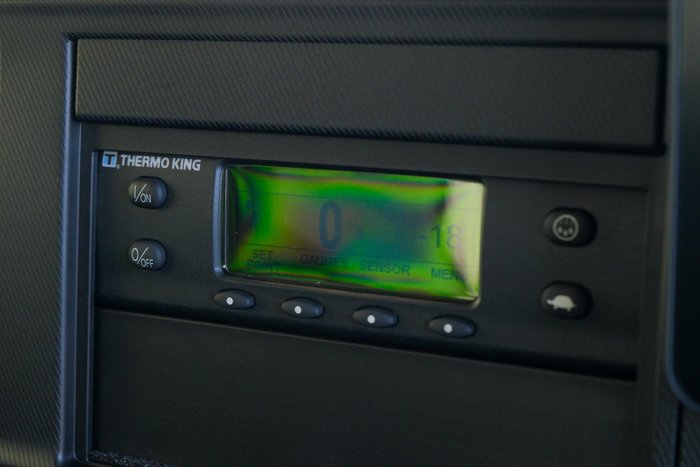

Thermo King Diesel/Electric T-1200 R Truck Refrigeration Unit
STAND-BY PLUG: Located on the passenger side front wall
VOLTAGE: 3 Phase / 415 Volts
COMPRESSOR: X430 C5 Reciprocating Compressor
ENGINE: Low Emission, Liquid Cooled TK 376
INSTALL: Includes a Standard Installation with Battery, Battery Box
and Fuel Pump
Warranty :
Thermo King T-1200 Units come with a 24 Month Warranty
All New Thermaxx Advantage Equipment is warranted for 4 Years in the case of faulty materials and workmanship, including
the Aluminium Rice Grain Floor.

FEATURES

ADR 80/04 (Euro VI) Compliant
Adaptive Driving Beam (ADB)

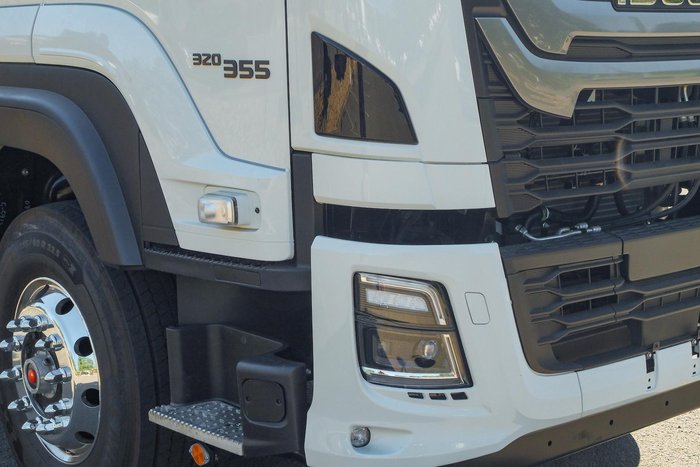

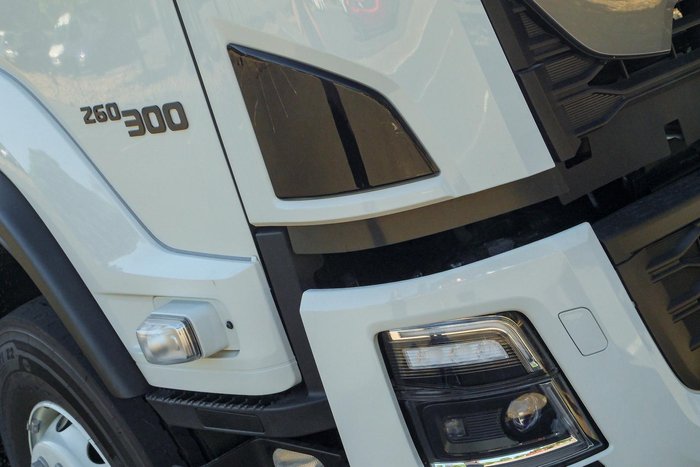

Bi-LED Headlamps with Daytime Running Lamps (DRL)
ECE-R29 Cab with Side Anti-Intrusion Beams
ISRI 6860/875 NTS2 Air Suspension Driver's Seat
Engine Compression Brake (I-Brake)


CHASSIS

Front Axle Capacity: 7,300 kg
Rear Axle Capacity: 20,000 kg

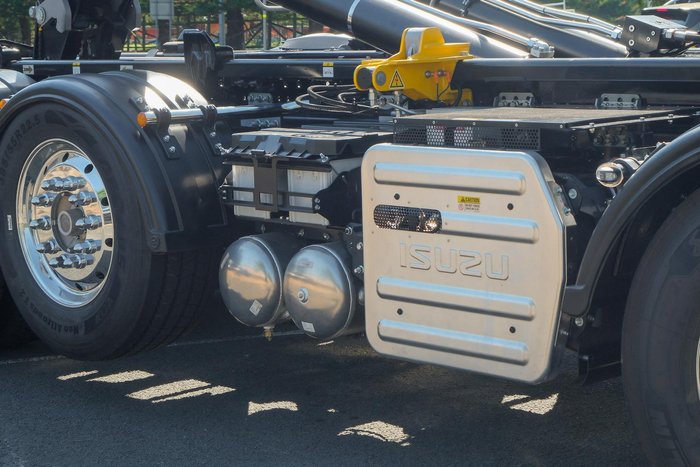

Fuel Tank: 400 L Aluminium
AdBlue Tank: 65 L High-Density Polyethylene

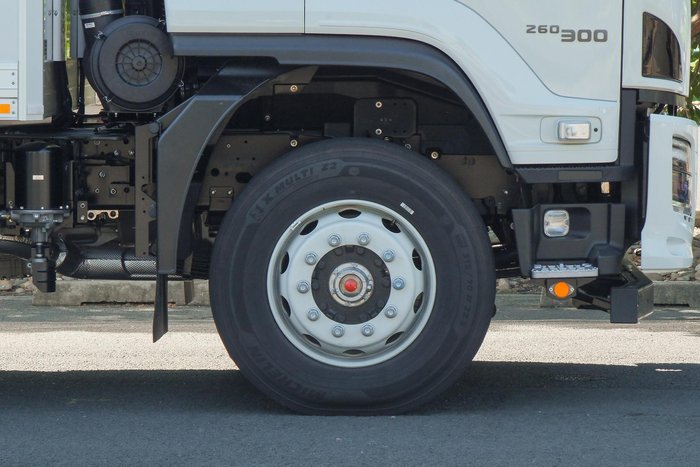

Front Axle Tyres: 315/70R22.5 156/150L Michelin X Multi Z2

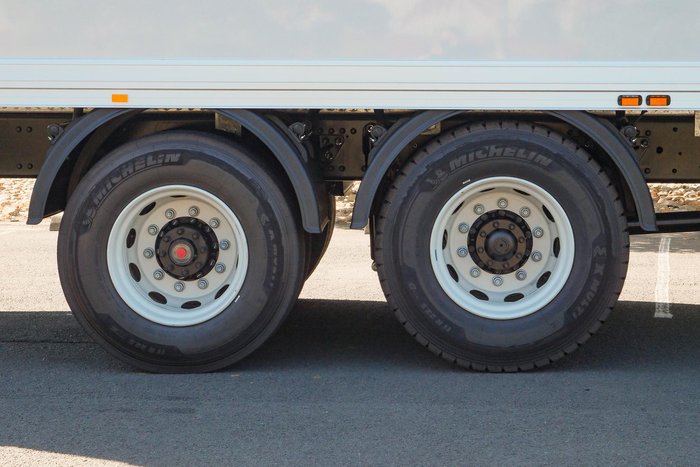

Drive Axle Tyres: 11R22.5 148/145L Michelin X Multi D+
Lazy Axle Tyres: 11R22.5 148/145L Michelin X Multi Z2

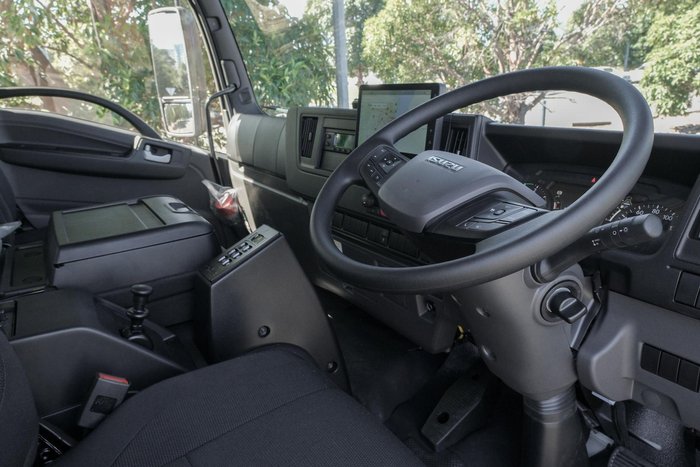

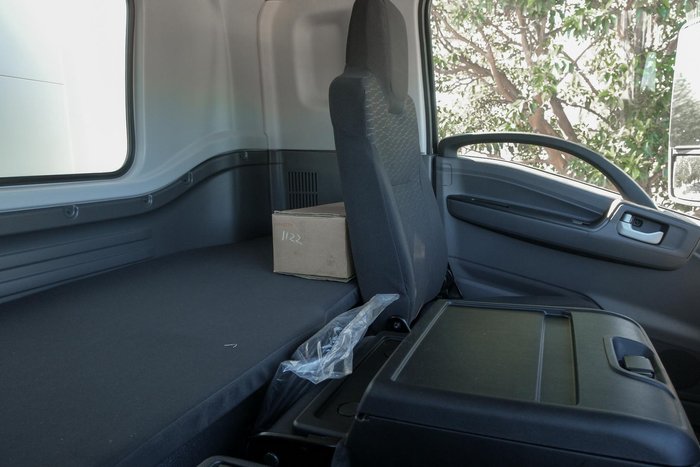

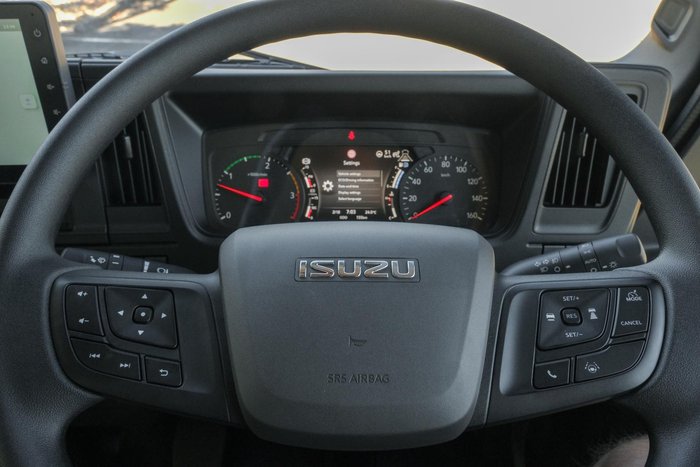

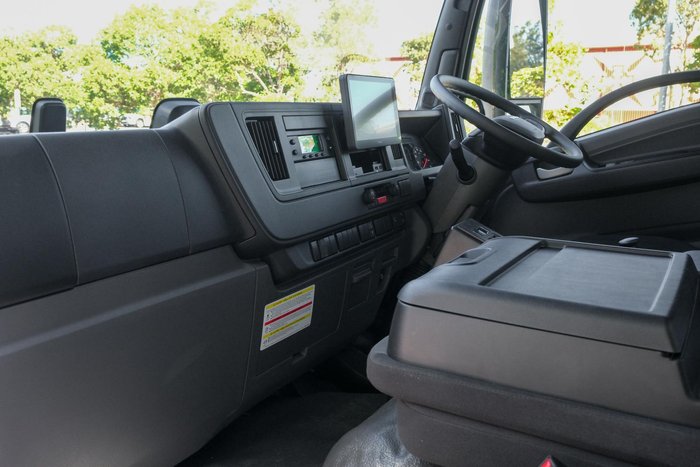

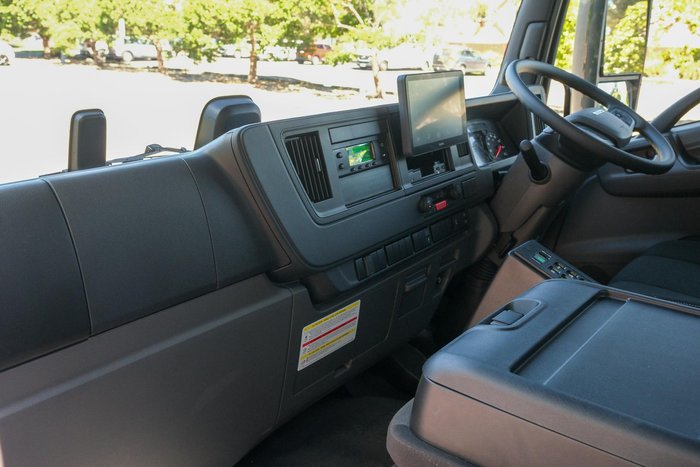

CABIN

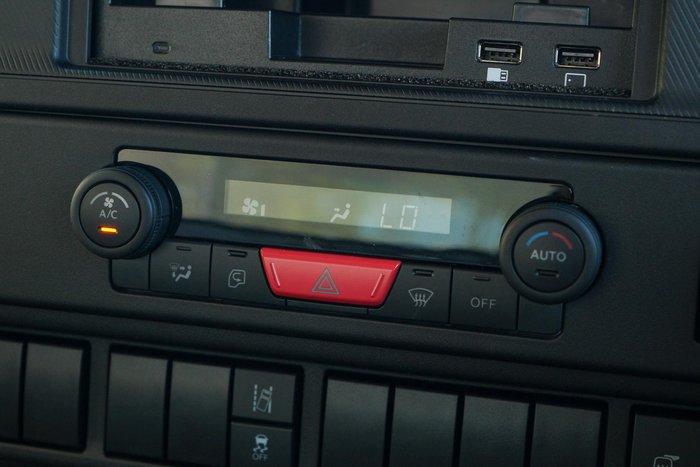

Automatic Climate Control

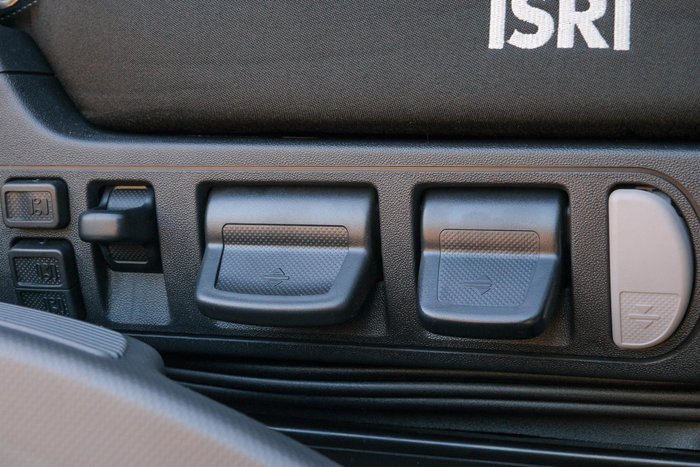

ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation

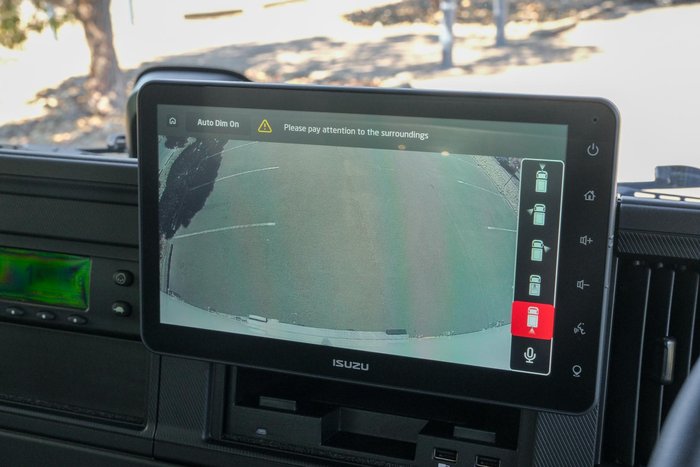

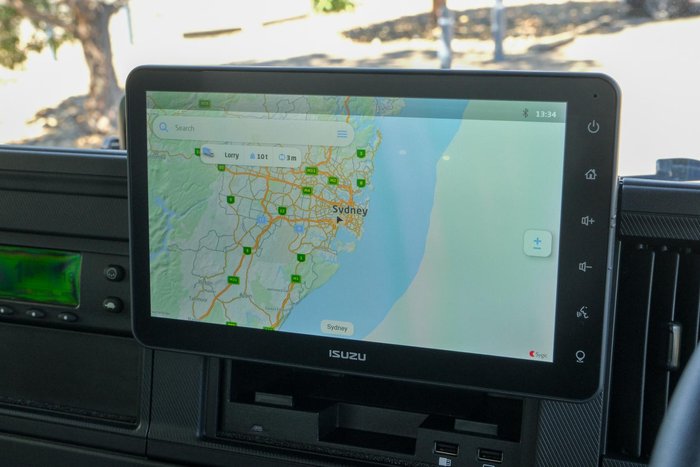

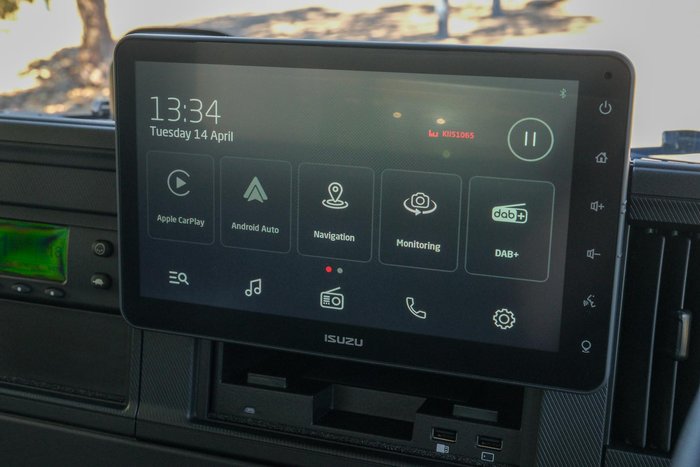

10.1" High Definition Touchscreen
Truck Tailored GPS Navigation with Live Traffic and Map Content Updates
Android Auto & Apple CarPlay Compatible
Wi Fi Connectivity
Bi LED Headlamps with Daytime Running Lamps (DRL)
LED Front Fog Lamps

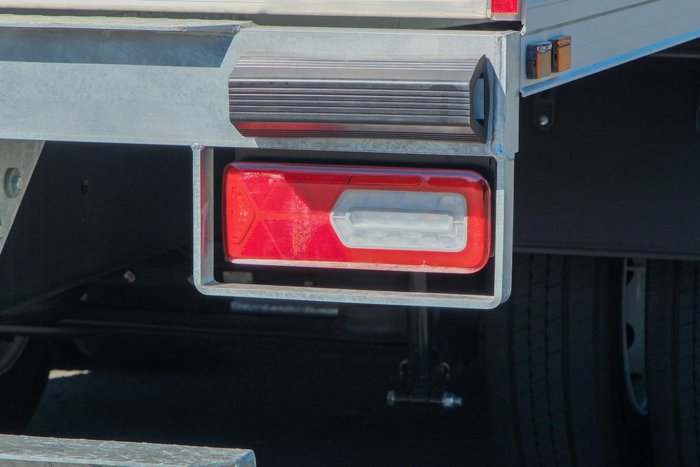

LED Tail Lamps
Reverse Alarm


WARRANTY & SERVICE

Chassis Warranty: 6 Years / 500,000 km / 10,000 Engine Hours
Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First)
Roadside Assist: 6 Years / 24/7 Unlimited km
